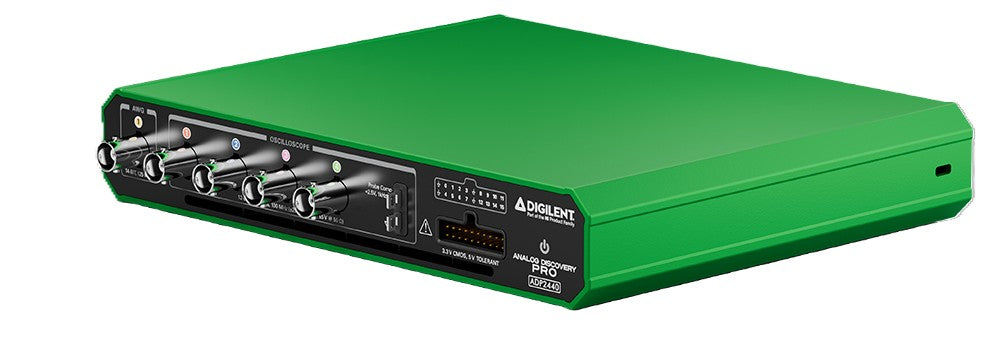

ADP2440 USB, Mixed Signal USB Oscilloscope, Waveform Generator, Logic Analyzer, and Variable Power Supply

What is WaveForms?

WaveForms is the free software application for the ADP2230 and enables use of the available analog and digital instruments. The software has been refined by customer feedback for over 10 years and features a computer and laptop friendly user interface that has the feel of traditional benchtop software. The device communicates with WaveForms via a USB or ethernet connection to your computer, allowing users to capture, record, analyze, and generate mixed signal and mixed domain waveforms. WaveForms can be downloaded and installed in under 60 seconds and can be tested without hardware using its demo mode feature. In addition to the use of instruments in the application, the WaveForms application has a script editor tool, which allows custom scripting of the instrument in JavaScript. WaveForms is designed to be run on a laptop or desktop computer and is Mac, Windows, and Linux compatible.

For even more customization potential, the WaveForms Software Development Kit (SDK) can be used to create custom applications and scripts in Python, C and additional languages. The ADP2230 is also compatible with LabVIEW and the Digilent Toolbox for compatibility with MathWorks' MATLAB Data Acquisition Toolbox.

The following instruments are available in the WaveForms application for the ADP2230:

• Oscilloscope
• Waveform Generator
• Power Supplies
• Voltmeter
• Data Logger
• Logic Analyzer

• Pattern Generator
• Static I/O
• Spectrum Analyzer
• Network Analyzer
• Impedance Analyzer
• Protocol Analyzer

Analog Inputs:

• Four BNC input channels with 12-bit resolution with up to ±25 V input range
• 100+ MHz bandwidth, 600 MS/s interleaved
• 10 different hardware input ranges from ±25 mV to ±25 V for multiple levels of precision
• User selectable 50 Ω or 1 MΩ input impedance
• Many additional views including FFT, Histogram, Persistence, Eye Diagram, and Analog-to-Digital plots
• Complex trigger support including Edge, Pulse, Timeout, Glitch, Transition, and Window conditions
• Dedicated Spectrum Analyzer, Network/Bode Plot Analyzer, and Impedance Analyzer instruments

Analog Output:

• One BNC output function generator channel with 14-bit resolution, ±5 V output range
  • 15+ MHz bandwidth, up to 125 MS/s
• Standard, Advanced, and Custom Waveforms supported
  • Sine, Square, Triangle, Ramp, DC, Pulse, Noise, Burst
  • Uni and Bidirectional Frequency and/or Amplitude Sweep
  • Multiple modulation techniques including AM, FM, PM, and Summation

Digital Inputs and Outputs:

• 16 digital I/O for the Logic Analyzer and Pattern Generator with fully configurable tri-state buffers
• Internally clocked up to a 1.2 GS/s sampling rate
• Many protocol analyzers including SPI, I2C, UART, 1-Wire, CAN, GPIB, I2S, LIN, JTAG, Manchester, SAE JA1850, and Quadrature Decoders
• Protocol generation support for SPI, UART, I2C, CAN, HDMI CEC, SWD, and AVR
• Two bidirectional BNC triggers for external and internal triggering

Software Support

• Digilent’s free and powerful WaveForms software for Mac, Windows, and Linux
• WaveForms SDK for custom applications and scripting through C/C++, Python, C#, Visual Basic

Additional Features:

• Dual Mode to operate two devices simultaneously for 8 analog inputs, 32 digital I/Os, and 2 AWGs
• Automatic device phase adjustment between devices in Dual Mode
• USB 3.2 (5 Gbps) transfer speeds
• Triggering system allows Scope, AWG, and Digital I/O subsystems to trigger off of each other or external trigger inputs and forward triggers to other instruments
• Complex and custom math for each instrument to support the filtering and generation of any signal
• Deep Buffer Memory that can be freely allocated between Analog and Digital systems
• Memory Segmentation with only 1 µs trigger re-arm latency between high-speed repeated captures
• Metal enclosure with DIN rail support for easy mounting

Other:

• Dimensions (W x D x H): 210 mm x 164.5 mm x 37.9mm (8.27" x 6.48" x 1.49")
• Dimensions with connectors (W x D x H): 210 mm x 191.4 mm x 37.9mm (8.27" x 7.54" x 1.49")
• Weight: 993 g (2.19 lbs)

• One (1) Analog Discovery Pro (ADP2440) 410-436-1
• Four (4) T2200 200 MHz x1/x10 Oscilloscope Probes
• One (1) 2x10 keyed flywire MTE Cable
• Twenty (20) Minigrabbers with Leads
• One (1) 2-meter USB 3.2 Type C to C cable
• One (1) 5 V, 4 Amp Switching Power Supply kit with US and EU adapters
• One (1) Quick Start Guide
• One (1) Safety, Environment, and Regulatory Information document

Recommended accessories:

• Digilent Part Number: 240-136 – BNC to Minigrabber Cable
• Digilent Part Number: 240-134 – BNC to Alligator Clip Cable
