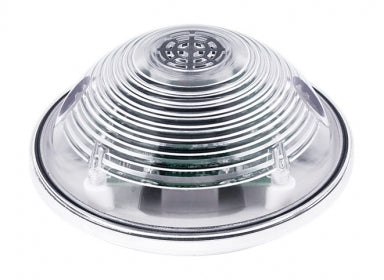

ALM-Horn-RGB Alarm Siren and 3-colour LED unit, Modbus TCP, PoE

The ALM-Horn-RGB have a water clear upper cover, RGB 3 color Ultrabright LED, 100dbm Piezo Transducer siren, with PoE Ethernet, Modbus TCP protocol & built-in Web Server.

ALM-Horn-RGB include 1-channel digital input for any dry contact output such as SA, BA, FA.. etc. and 1-channel digital output, Each device have 4 kinds of alarm tone, NC/NO input mode select, user define RGB alarm LED color. The ALM-Horn-RGB support Modbus protocol, Which makes perfect integration for monitoring or control in SCADA software, HMI Modbus & Utility's. ALM-Horn-RGB have High Sound Pressure output, wide input power range and IP43 waterproof.

• Built-in Web Server
• PoE Ethernet support
• Modbus TCP protocol support
• 1 Photo couple input, 1 Open Collector output
• Water clear upper cover
• 8 user define RGB 3 color Ultrabright LED.
• 4 Selectable Alarm Tone.
• 100 dbm Piezo Transducer Output.

ALM-Horn-RGB Alarm Siren/LED unit datasheet
