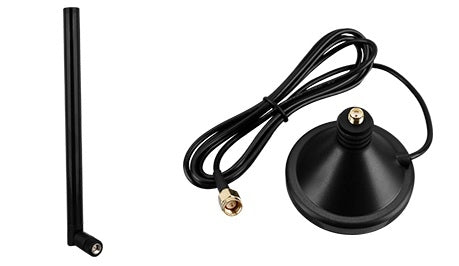

ANT-421 5dBi 4G External Antenna & Antenna Base


Price:
Sale price£34.00

Description

The ANT-421 is a GPRS/GSM/2G/3G/4G Antenna with Mag-mount base (1.5m cable). This can be used in place of the standard antenna's supplied with the M2M series of products such as the GT-540, WISE-5231M-3GWA etc.

Features



ANT-421-05
  • 2G GSM/GPRS Antenna (850/900/1800/1900 MHz)
  • 3G WCDMA Antenna (850/1900/2100 MHz)
  • 4G LTE Antenna (800/850/900/1800/2100/2600 MHz)
  • SMA Male (Plug)
  • Omni-Directional

ANT-Base-01
  • Support 3G/4G Antenna
  • Magnetic Disk Base
  • SMA Male to SMA Female



Specifications

Model ANT-421-05 ANT-Base-01
Frequency 698 ~ 960 MHz/1710 ~ 2110 MHz/2310 ~ 2690 MHz
V.S.W.R. 3.0 @ 698 ~ 960 MHz
4.0 @ 1710 ~ 1800 MHz
2.5 @ 1800 ~ 2690 MHz
Gain 1.5 dBi @ 698 ~ 960 MHz
4.0 dBi @ 1710 ~ 2110 MHz
5.0 dBi @ 2110 ~ 2500 MHz
3.5 dBi @ 2500 ~ 2690 MHz
Operating Temperature - 30 °C ~ + 80 °C
Storage Temperature - 30 °C ~ + 85 °C

Mechanical Spec.

Model ANT-421-05 ANT-Base-01
Connector Type SMA Male (Plug) SMA Male to SMA Female
Material of Radiator Cu (Plated)
Material of Coaxial Cable - RG174 Cable/1500 mm
Deminsions (L x W x H) 207 mm/13 mm 60 mm/42 mm
