Description

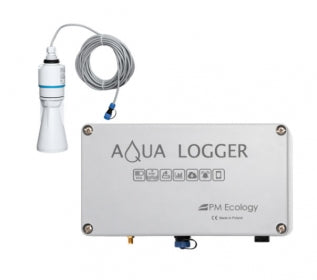

The AquaLogger Compact is a remote water and wastewater level station with a Radar or Hydrostatic sensor. The logging device and battery supply are both enclosed in a 220 x 120 x 90mm housing.
Such configuration allows Aqua Logger RDR COMPACT to be suitable for level monitoring in closed channels, sewage wells, small scale sewage pumping stations and similar locations where compact size of a device is important. There are three protection levels available: IP67, IP68 and IP67 ATEX.
The station is powered by a set of Lithium batteries placed inside the housing. With a measurement taken every 10 minutes and the data transmission made every 4hours, the station is able to operate for 5 years minimum.
Twelve months online datahosting and access is included initially.
Features
- Ultra-low power consumption
- Non-contact measurement (RDR)
- Compact housing with integrated lithium batteries
- Three protection levels available: IP67, IP68 and IP67 ATEX.
- Built-in GMS/GPRS data transmission
- Full remote configuration
- Data accessed through every web browser
- Possible data transfer directly to user’s server Text and email notifications
- Increase of measurement and data transfer intervals when threshold values are exceeded
Specifications
- Standby power consumption <250μW GPRS transfer power consumption ~360mW
- Measurement power consumption ~100mW
- Single measurement time <2s
- Average data transfer modem activity time 18 … 22s typically
-
Approx. working time without battery replacement
data update – 60min, data sampling – 10min >5 years
data update – 10min, data sampling – 10min >2 years - Data transfer interval in range: (1min)….(24h)
- Measurement interval in range: (1min)….(24h)
- Internal memory 50 000 records
- Registered technical parameters Electronics’ temperature, power supply voltage, GSM signal, modem activity during last data transfer, cabinet door open
- Text alarms For medium level and chosen technical parameters
- IP levels available IP67 (standard), IP68 and IP67ATEX (options)
- Data logger housing Polyester 220x120x90mm
- Housing options: IP68 and IP67ATEX
Additionally, each version has following options: - internal antenna /external wired antenna - lid opening alert
| Parameter | HS | RDR |
|
|
|
| Measurement range | 0- 4m (standard); 0- 8m or 0- 20m (options) | 0-8m |
| Probe type | Ceramics, Al2O3 (96%) | Ceramics, Al2O3 (96%) |
| Sensor output signal | 4- 20mA | 4- 20mA |
| Accuracy at 25°C) | ± 0,3% of measuring range |
range 0,0-0,1m - max. error: 20mm range 0,1-0,5m - max. error:10mm remaining range - max. error: 5mm |
| Probe working temperature | -10°….+70°C | -40°….+60°C |
| Working frequency | K-band (~ 26GHz) | |
| Transmission power | 1m distance: < 12 nW/cm2, 5m distance: < 0.4 nW/cm2 | |
| Configuration | with any Android or Mac OS X System and Bluetooth transmission | |
| Long-term stability (1 year) | ± 0,2% | |
| Probe’s housing | Stainless steel 1.4404 (AISI316L), IP 68 (2.0 bar; 20 m), dimensions 96 x Ø 25mm | |
| Probe’s wiring material | PUR | |
| Data transfer type | GSM / GPRS | |
| Data logger working temperature | -40°….+60°C | |
| Power supply | 10 - 30V DC | |
| Power supply | built-in packet of lithium batteries with rated voltage 14,4V, 19Ah capacity | |
