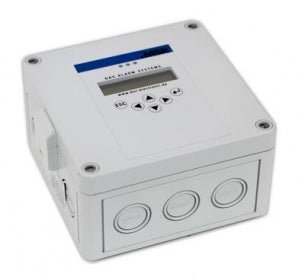

DEM06S Door Entrance Module (Slave version)
DEM06S Door Entrance Module (Slave version)

DEM06S Door Entrance Module (Slave version)

Door Entrance module (Slave) for DGC Gas Monitoring system to alert on Gas Detection.
Contact for Price

FREE delivery to UK on orders over £500

Or phone us for our best price

0800 048 1057

Free Shipping

Free standard shipping on orders over £500

Free Returns

30 Day Money Back Guarantee
DEM06S Door Entrance Module (Slave version)

DEM06S Door Entrance Module (Slave version)

£356.00
DEM06S Door Entrance Module (Slave version)

DEM06S Door Entrance Module (Slave version)

£356.00
Description
Description
x

Door Entrance module (Slave) for DGC Gas Monitoring system to alert on Gas Detection.

Features
Features
x
  • Especially suitable for monitoring rooms with dangerous gas concentrations such as laboratories, underground garages and car parks
  • Slave version for integration in the DGC-06 system
  • Master version as stand-alone system
  • Logical menu structure in 5 selectable languages
  • Simple, fast commissioning due to pre-configuration with standard parameters
  • Visual alarm and text messages with individually settable message texts
  • Serial interface RS-485 • IP65 version
  • Option: Integrated warning buzzer with reset function internal/external
  • Option: 2x open collector output for warning light and warning horn with rest function internal/external.
Specifications
Specifications
x

ELECTRICAL

Power supply 18–28 V DC, reverse polarity protected

Power consumption
(w/o options)
40 mA, max. (1.0 VA)
Overvoltage category  I
Alarm relay (2)  250 V AC, 5 A, potential-free, change-over contact (SPDT)
Fault relay (1) 250 V AC, 5 A, potential-free, change-over contact (SPDT)
Transistor output (2) 24 V DC/0,1 A (switching to plus)
Digital input (2) 24 V DCV, 10 mA (potential-free contact against GND)
Analog output signal (1) Proportional, overload and short-circuit proof, load ≤ 500 Ohms
4–20 mA = measuring range
2.4–< 4 mA = tolerable underrange
> 20–21.2 mA = tolerable overrange
≤ 2,0 mA = fault
Outgoing line for field bus 24 V DC for max. 10 SB2Units., overload and short-circuit proof, reverse-polarity protected
Field bus for SB2Unit RS-485 / 19200 Baud (max. cable length 900 m)

VISUALISATION

LC-Display 2 lines, 16 characters each, background highlighted, 2 colours
Status LED (3) Normal operation-Fault–Alarm
Operation  Menu driven via 6 pushbuttons


SERIAL INTERFACE

Transceiver  RS-485 / 19200 Baud



AMBIENT CONDITIONS

Temperature range -10 °C to +50 °C (14 °F to +122 °F)
Humidity range 15–90 % RH non-condensing
Storage temperature -20 °C to +65 °C (-4 °F to 149 °F)
Pressure Range 70-130 kPa

PHYSICAL

Housing type A (standard) and type C (for options)  Polycarbonate
Burning behaviour  UL 94 V2
Housing colour RAL 7032 (light grey)
Dimensions housing (W x H x D)
• Housing type A
• Housing type C
94 x 130 x 57 mm (3.7 x 5.12 x 2.24 in.)
130 x 130 x 75 mm (5.12 x 5.12 x 2.95 in.)
Weight Max. 0.6 kg (1.32 lbs)
Protection class (delivery state)* IP65
Installation Wall mounting
Knockouts for cable entry  Standard 1x M20
Connection type Screw-type terminals, 0.25–2.5 mm2

1 If there are changes to the housing it has to be re-evaluated.

OPTIONS

INTERNAL BUZZER

Acoustic pressure  > 85 dB (A) (distance 0.1 m)
Frequency 2300 Hz ± 300 Hz

OPEN COLLECTOR (2)

Transistor output  24 V DC / 0.1 A, (Plus switching)
Digital input (1) Potential-free contact 1




REGULATIONS

Directives EMC Directives 2014/30/EU
Low Voltage Directive 2014/35/EU
CE, UKCA

Conformity to:
EN 61010-1:2010
ANSI/UL 61010-1
CAN/CSA-C22.2 No. 61010-1
Warranty 2 years on device

All specifications were collected under optimal test conditions.
We confirm compliance with the minimum requirements of the applicable standard.

Technical
Technical
x

Door Access Module for Gas Monitoring System Datasheet

Applications
Applications
x

The DEM-06 is especially designed for the use in underground garages and multi-storey car parks or for room application e.g. laboratories.
