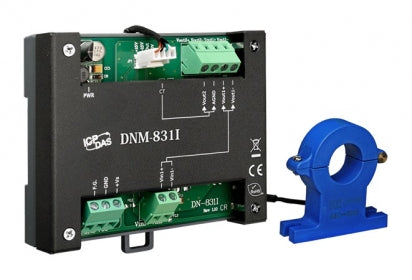

DNM-831 Voltage Attenuator and Current Transformer series (AC/DC)


Price:
Sale price£122.00

Description

The DNM-800 series are a range of Voltage Attenuator and Current Transformer units designed for use in high-voltage applications.

The current can be converted into +/-10 Vpp attenuated signal, so that a general electronic measuring device is able to read the signals. Compared to the power meter products (PM-3033, PM-3133, PM-4324, etc.), in addition to AC signals, the DNM-800 series can convert DC signals as well.


The users can then use an appropriate Remote I/O Modules such as: M-7017R, I-87017RW, or ET-7217 to measure the converted +/-10 VDC signal via DNM-800 series. And use M-7017RMS or I-87017W-RMS, etc. to measure the AC signals.

By using DNM-800 series, the power data of all kinds of machines and AC/DC motors can be easily measured and retrieved, and then the analyzed data can be used to develop a model to build a failure warning system.

Please see Recommended products section at the base of the page for the available variant pricing.

Features

  • High Voltage Input and High Current Input Measurement
  • Three Way Isolation
  • Linear Attenuation Ratio
  • High Input Impedance
  • 3000 VDC Channel to Channel Isolation
  • 4 kV ESD Protection
  • 3 kV Surge Protection
  • RoHS Compliance
  • Easily wire connection
  • Operating Temperature: -25 ~ +75 °C

Specifications

See Individual Products in the Recommend Products section at the base of this page.

Technical

DNM-831 series Voltage Attenuator, Current Transformer for AC or DC Datasheet
