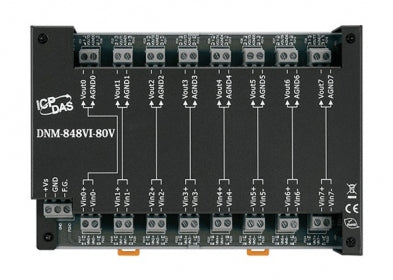

DNM-848VI-80V 8-channel +/- 80V input Signal Conditioner (AC/DC)
DNM-848VI-80V 8-channel +/- 80V input Signal Conditioner (AC/DC)

DNM-848VI-80V 8-channel +/- 80V input Signal Conditioner (AC/DC)

£474.00
£474.00
(-0%)
8 channel +/-80V attenuator for AC or DC Voltages. +/- 10V output. Isolated
Subtotal: £474.00

Free Shipping

Free standard shipping on orders over £500

Free Returns

30 Day Money Back Guarantee
DNM-848VI-80V 8-channel +/- 80V input Signal Conditioner (AC/DC)

DNM-848VI-80V 8-channel +/- 80V input Signal Conditioner (AC/DC)

£474.00
DNM-848VI-80V 8-channel +/- 80V input Signal Conditioner (AC/DC)

DNM-848VI-80V 8-channel +/- 80V input Signal Conditioner (AC/DC)

£474.00
Description
Description
x

The DNM-848VI series are 8-channel AC or DC voltage input attenuator. The maximum input range is from ±10 V / ±80 V / ±150 V can be attenuated to ±10 V. providing 3000 VDC intra-module isolation and 3000 VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017, I-87017, M-7017RMS and I-87017W-RMS etc. to measure  high voltage signals.

Features
Features
x
  • AC/DC Source Input
  • High Voltage Input Measurement
  • Linear Attenuation Ratio
  • High Input Impedance
  • Easily wire connection
Specifications
Specifications
x
EMS Protection
ESD (IEC 61000-4-2) ±4 kV contact for power line, input and output channels, ±8 kV air for random point
Surge (IEC 61000-4-5) ±3 kV for power liner
Analog Input
Channels 8
Type AC/DC Voltage
Range ±80 Vpp
Accuracy 1% of FSR
Bandwidth 30 KHz
Input Impedance >1 MΩ
Channel-to-Channel Isolation 3000 VDC
Intra-module Isolation 3000 VDC
Analog Output
Channels 8
Type AC/DC Voltage
Range ±10 Vpp
Power
Input Range +10 ~ +30 VDC
Consumption 9.2 W
Mechanical
Casing Metal
Dimensions (mm) 173 x 122 x 35 (W x L x D)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 10 ~ 90% RH, Non-condensing



Technical
Technical
x

DNM-848VI 8-channel voltage signal conditioner datasheet
