Description
DT300 Series boards deliver high-quality, low-cost, multifunction PCI data acquisition with the flexibility of six different versions to match your needs. Each board contains 16SE/8DI analog inputs, 23 digital I/O lines, and four counter/timers. Options include 12- and 16-bit analog inputs and analog outputs.

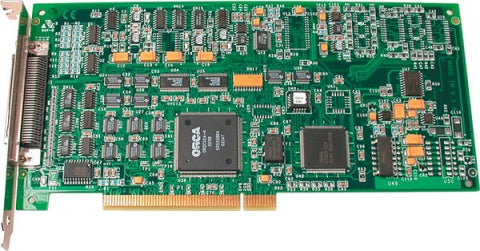

The DT302-PBF is a 12-bit PCI Data Acquisition Board, with 16Single-Ended/8Differential analog inputs, 2 outputs. Capable of sampling speeds up to 225 kHz.
Features
- High-speed dynamic digital inputs can time stamp your digital input in relation to A/D
- Flexible triggering and clocking capabilities
- 1024-location channel-gain list allows flexible channel selection in any sequence desired
-
Included software and drivers
-
Keithley equivalent parts:
- DT301 = KPCI-3101A
- DT302 = KPCI-3102A
- DT303 = KPCI-3101A
- DT304 = KPCI-3104A
Specifications
Analog Input | ||
Channels | Resolution | Max Sample Rate |
16 SE/8 DIFF | 12-bit or 16-bit | Up to 400 kS/s |
Sampling | Ranges | Isolation |
Multiplexed | ±10 V, ±5 V, ±2.5 V, ±1.25 V, 0-10 V, 0-5 V, 0-2.5 V, 0-1.25 V | — |
Analog Output | ||
Channels | Resolution | Speed |
Up to 2 | 12-bit or 16-bit | Up to 10 kS/s |
Digital I/O | ||
Channels | Counter/Timers | Encoder |
23 | 4 | — |
