Description

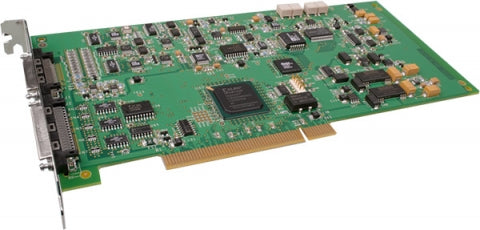

The DT3034 is a high-performance, high-resolution DAQ board for the PCI bus that offers 16-bit measurements on up to 32 single-ended or 16 differential channels with a sampling rate of 500kHz. With an ENOB (Effective Number of Bits) rating of over 14.2 bits, this is the most accurate PCI board available. And the SNR (Signal-to-Noise Ratio) of 100dB provides the ultimate in clean signal measurements. The DT3034 can operate multiple subsystems simultaneously at full speed without the loss of any data.
Features
- 500kHz throughput on 32 SE/16 DI, 16-bit analog input channels.
- Two, 500kHz, 16-bit deglitched waveform analog output channels to generate signals to stimulate systems under test
- 16 clocked digital I/O driving solid state relays
- Flexible triggering and clocking modes accommodate all application needs
- Four 16-bit counter/timers for event counting or frequency measurement 1024-location channel-gain list for flexible scanning at a variety of gains
- Software and drivers compatible with Windows XP/Vista/7
Specifications
ANALOG INPUT | ||
CHANNELS | RESOLUTION | MAX SAMPLE RATE |
32 SE/16 DIFF | 16-bit | 500 kS/s |
SAMPLING | RANGES | ISOLATION |
Multiplexed | ±10 V, ±5 V, ±2.5 V, ±1.25 V, 0-10 V, 0-5 V, 0-2.5 V, 0-1.25 V | — |
ANALOG OUTPUT | ||
CHANNELS | RESOLUTION | SPEED |
2 | 16-bit | 500 kS/s |
DIGITAL I/O | ||
CHANNELS | COUNTER/TIMERS | ENCODER |
16 | 4 | — |
SOFTWARE | POWER | |
OS SUPPORT | DRIVERS | POWER |
Windows® | Open Layers® SW Suite | Bus powered |
