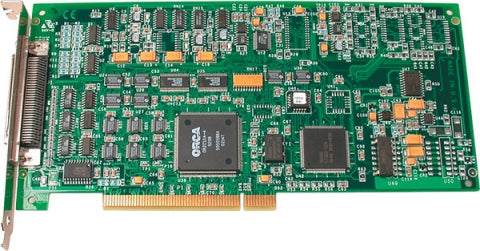

DT321-PBF PCI Data Acquisition Board, 16-bit, 250 kHz, 16SE/8DI analog inputs


Price:
Sale price£1,088.00

Description

DT300 Series boards deliver high-quality, low-cost, multifunction PCI data acquisition with the flexibility of six different versions to match your needs. Each board contains 16SE/8DI analog inputs, 23 digital I/O lines, and four counter/timers. Options include 12- and 16-bit analog inputs and analog outputs.

The DT321-PBF is a 16-bit PCI Data Acquisition Board, with 16Single-Ended/8Differential analog inputs, capable of sampling speeds up to 250 kHz.


Features

  • High-speed dynamic digital inputs can time stamp your digital input in relation to A/D
  • Flexible triggering and clocking capabilities
  • 1024-location channel-gain list allows flexible channel selection in any sequence desired
  • Included software and drivers

  • Keithley equivalent parts:
    • DT301 = KPCI-3101A
    • DT302 = KPCI-3102A
    • DT303 = KPCI-3101A
    • DT304 = KPCI-3104A

Specifications

Analog Input
Channels Resolution Max Sample Rate
16 SE/8 DIFF 12-bit or 16-bit Up to 400 kS/s
Sampling Ranges Isolation
Multiplexed ±10 V, ±5 V, ±2.5 V, ±1.25 V, 0-10 V, 0-5 V, 0-2.5 V, 0-1.25 V
Analog Output
Channels Resolution Speed
Up to 2 12-bit or 16-bit Up to 10 kS/s
Digital I/O
Channels Counter/Timers Encoder
23 4

Technical
