Description

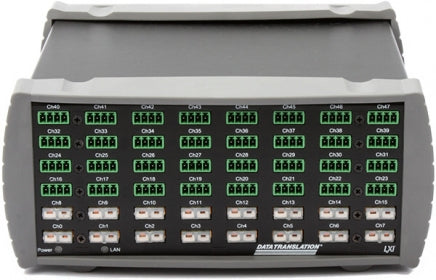

MEASURpoint is an ultra-accurate Ethernet (LXI) instrument for measuring any combination of thermocouple, RTD, and voltage inputs. MEASURpoint provides ± 500V isolation channel-to-channel. It includes QuickDAQ application software to configure and acquire temperature, resistance, and voltage channels and to display, log, analyze and export data to other formats including Excel. A ready-to-measure program for immediate productivity.
Features
- ±500 Vpk transient withstand channel-to-channel (functional) isolation
- Dedicated 24-bit: Delta-Sigma ADC/ch
- 8DI to 48DI simultaneous analog inputs
- Sampling rates: up to 10Hz/ch
- Software selectable ranges on voltage boards of ±10V, ±60V (±30 VAC)
- Auto-calibrating front-end: resets the zero point on each power-up
- Measurement Instrument Calibration Utility: allows in-field calibration
- Digital I/O isolated: 8 in/8 out
- Packaging options: compact, rugged 2U, half-rack enclosure
Thermocouple Input Features:
- Voltage input range: ±75mV Dedicated CJC (cold junction compensation) input for each thermocouple channel
- Supports B, E, J, K, N, R, S, and T thermocouple types
- Break-detection circuitry: detect open thermocouple inputs
RTD Input Features:
- Voltage input range: ±1.25V
- 4-wire, 3-wire, or 2-wire PT100, PT500, and PT1000 RTDs supported
Software Features:
- QuickDAQ — Acquire and display from all Data Translation USB and Ethernet devices that support analog input streaming. Acquire data, record data to disk, display the results in both a plot and digital display, and read a recorded data file. Two additional options can be purchased to add FFT analysis capabilities to the base package. Also, data can be exported to other applications like Microsoft Excel® and MATLAB® for more advanced analysis
- IVI-COM driver — works in any development environment that supports COM programming, including Visual Basic®, Visual C#® .NET, MATLAB®, VEE Pro, LabVIEW™ or LabWindow, and others
- SCPI support — SCPI (Standard Commands for Programmable Instruments) is a universal programming language for electronic test and measurement instruments, based on the IEEE 488.1 and IEEE 488.2 standards
Specifications
| Analog Input | |||
| Channels | Resolution | Max Sample Rate | Sampling |
| Up to 48 | 24-bit | 10 S/s/ch | Simultaneous |
| Ranges | Isolation | ||
| ±60 V, ±10 V | ±500 V ch-ch (functional) | ||
| Sensor | |||
| Thermocouple | RTD | Thermistor | Voltage |
| Yes | Yes | — | Yes |
| Analog Output | |||
| Channels | Resolution | Speed | |
| — | — | — | |
| Digital I/O | |||
| Channels | Counter/Timers | Encoder | |
| 8 | — | — | |
