Description

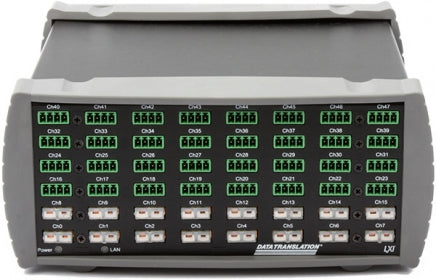

The DT8874 MEASURpoint Ethernet data acquisition (DAQ) device provides simultaneous analog input along with any combination of isolated temperature, resistance and voltage measurements. This device features one A/D per channel and auto calibration in a rugged half rack enclosure for immediate productivity.
Custom Configurations Available by Request*
Features
- 30 VAC, 60 VDC continuous functional isolation ch-ch and ch-gnd, verified by a 500Vpk withstand
- Dedicated 24-bit: Delta-Sigma ADC/ch
- 8DI to 48DI simultaneous analog inputs
- Sampling rates: up to 10Hz/ch
- Software selectable ranges on voltage boards of ±10V, ±60V (±30 VAC)
- Auto-calibrating front-end: resets the zero point on each power-up
- Measurement Instrument Calibration Utility: allows in-field calibration
- Digital I/O isolated: 8 in/8 out
- Packaging options: compact, rugged 2U, half-rack enclosure
Thermocouple Input Features:
- Voltage input range: ±75mV Dedicated CJC (cold junction compensation) input for each thermocouple channel
- Supports B, E, J, K, N, R, S, and T thermocouple types
- Break-detection circuitry: detect open thermocouple inputs
RTD Input Features:
- Voltage input range: ±1.25V
- 4-wire, 3-wire, or 2-wire PT100, PT500, and PT1000 RTDs supported
Software Features:
- QuickDAQ — Acquire and display from all Data Translation USB and Ethernet devices that support analog input streaming. Acquire data, record data to disk, display the results in both a plot and digital display, and read a recorded data file. Two additional options can be purchased to add FFT analysis capabilities to the base package. Also, data can be exported to other applications like Microsoft Excel® and MATLAB® for more advanced analysis
- IVI-COM driver — works in any development environment that supports COM programming, including Visual Basic®, Visual C#® .NET, MATLAB®, VEE Pro, LabVIEW™ or LabWindow, and others
- SCPI support — SCPI (Standard Commands for Programmable Instruments) is a universal programming language for electronic test and measurement instruments, based on the IEEE 488.1 and IEEE 488.2 standards
Specifications
| ANALOG INPUT | |||
| CHANNELS | RESOLUTION | MAX SAMPLE RATE | SAMPLING |
| Up to 48 | 24-bit | 10 S/s/ch | Simultaneous |
| RANGES | ISOLATION | ||
| ±10 V, ±60 VDC (±30 VAC) |
±60 V ch-ch (functional) ±500 V ch-ch (peak withstand) |
||
| SENSOR | |||
| THERMOCOUPLE | RTD | THERMISTOR | VOLTAGE |
| Yes | Yes | — | Yes |
| ANALOG OUTPUT | |||
| CHANNELS | RESOLUTION | SPEED | |
| — | — | — | |
| DIGITAL I/O | |||
| CHANNELS | COUNTER/TIMERS | ENCODER | |
| 16 | — | — | |
| SOFTWARE | POWER | |
| OS SUPPORT | DRIVERS | POWER |
| Windows® | MEASURpoint | External |
