Description

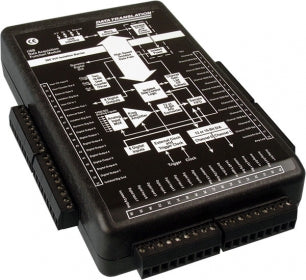

The DT9805 and DT9806 isolated, portable USB data acquisition (DAQ) modules feature integrated signal conditioning designed specifically for thermocouple measurements.
Features
- 16SE/8DI analog input channels for thermocouple or voltage measurements
- Support for B, E, J, K, N, R, S, and T thermocouple types
- One cold junction compensation (CJC) circuit for all thermocouple inputs
- 16-bit resolution with sampling rates up to 50kHz
- 16 DIO, 2 C/T
- Optional analog outputs
- ±500V galvanic isolation to the computer to prevent ground loops
- Powered by USB
- Supported by QuickDAQ application software
- Compatible with LabVIEW™ and MATLAB®
- DT9806 is a Keithley KUSB-3108 equivalent
Specifications
Analog Input | |||
Channels | Resolution | Max Sample Rate | Sampling |
16 SE/8 DIFF | 16-bit | 50 kS/s | Multiplexed |
Ranges | Isolation | ||
±10 V, ±1 V, ±100 mV, ±20 mV | ±500 V ch-host | ||
Sensor | |||
Thermocouple | RTD | Thermistor | Voltage |
Yes | — | — | Yes |
Analog Output | |||
Channels | Resolution | Speed | |
Up to 2 | 16-bit | — | |
Digital I/O | |||
Channels | Counter/Timers | Encoder | |
16 | 2 | — |
