Description
The DT9812 Series of low-cost USB data acquisition (DAQ) devices provide analog input along with analog output and digital functions. Each device is designed with a shielded, rugged enclosure. OEM versions are available for embedded applications.
Features
- 8 analog inputs, 12-bit, up to 100 kS/s
- 2 analog outputs, 12-bit, up to 75 kS/s
- 16 digital I/O, one 32-bit counter timer
- Shielded, rugged enclosure with built-in screw terminals
- Powered by USB
- Supported by QuickDAQ application software
- Compatible with LabVIEW™ and MATLAB®

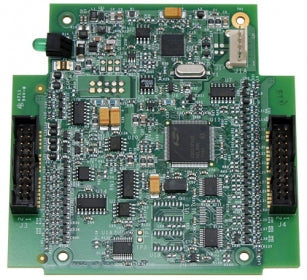

- OEM option: board-level module with two 20-pin connectors for connecting I/O signals
- DT9812-10V is a Keithley KUSB-3100 equivalent
Specifications
Analog Input | ||
Channels | Resolution | Max Sample Rate |
8 | 12-bit | Up to 100 kS/s |
Sampling | Ranges | Isolation |
Multiplexed | ±10 V, ±5 V, ±2.5 V, ±1.25 V | — |
Analog Output | ||
Channels | Resolution | Speed |
2 | 12-bit | Up to 75 kS/s |
Digital I/O | ||
Channels | Counter/Timers | Encoder |
16 | 1 | — |
