Description

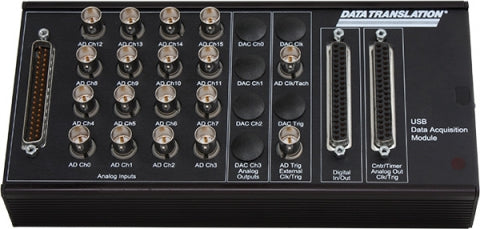

The DT9826 is a high-performance, multifunction USB data acquisition (DAQ) module. The DT9826 features 16 simultaneous analog inputs, 16 digital input/output lines, 2 counter/timers, and a tachometer channel on a single plug-and-play device. Available as a board-level OEM version for embedded test applications, or installed in a metal BNC connection box for easy sensor connections.
Features
- 16 Simultaneous, 24-bit Delta-Sigma A/D channels with ±10V input range
- Up to 41.6 kS/s per channel
- Simultaneous subsystem operation: analog input, digital I/O, counter/timers, and tachometer
- 16 DIO, two 32-bit C/ T channels, 1 Tachometer
- ±500V galvanic isolation...prevent ground loops
- Board-level only OEM version available
- Powered by USB
- Supported by QuickDAQ application software
- Compatible with LabVIEW™ and MATLAB®
Specifications
Analog Input | ||
Channels | Resolution | Max Sample Rate |
16 | 24-bit | 41 kS/s/ch |
Sampling | Ranges | Isolation |
Simultaneous | ±10 V | ±500 V ch-ground |
Analog Output | ||
Channels | Resolution | Speed |
— | — | — |
Digital I/O | ||
Channels | Counter/Timers | Encoder |
16 | 2 | — |
