Description

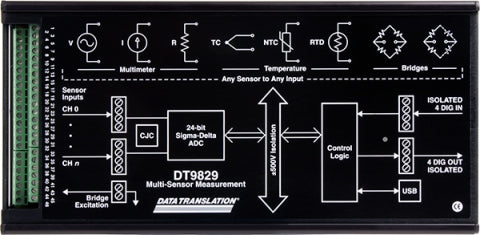

The DT9829 is a portable data acquisition (DAQ) multi-sensor measurement modules for USB. The DT9829 supports a universal array of sensor types: voltage inputs, current, thermocouples, RTDs, thermistors, resistance, bridge-based sensors, and strain gages.
Features
-
Direct connection of many types of sensors...software selectable per channel
- Thermocouples: B, E, J, K, N, R, S, and T types
- RTD: PT100, PT500, PT1000...2, 3, 4-wire
- Thermistors
- Bridge-based sensors: internal 3.0VDC excitation, ±200mV input range
- Voltage: ±10V, ±2V, ±200mV input range
- Current: ±25mA
- Resistance: 0 to 200k ohm
- Each input channel independent...any sensor on any channel, no interaction
- Sampling to 960 Hz
- 24-bit Delta-Sigma ADC...eliminates aliasing for extremely accurate measurement
- Thermocouple CJC and open circuit detection
- 4 isolated digital inputs and digital outputs
- ±500V galvanic isolation...to PC and ground
- USB 2.0 powered...no extra power supply needed
- Terminal block connections
- Supported by QuickDAQ application software
Specifications
ANALOG INPUT | |||
CHANNELS | RESOLUTION | MAX SAMPLE RATE | SAMPLING |
8 | 24-bit | 960 S/s | Multiplexed |
RANGES | ISOLATION | ||
±10 V, ±2 V, ±200 mV | ±500 V ch-ground | ||
SENSOR | |||
THERMOCOUPLE | RTD | THERMISTOR | VOLTAGE |
Yes | Yes | Yes | Yes |
ANALOG OUTPUT | |||
CHANNELS | RESOLUTION | SPEED | |
— | — | — | |
DIGITAL I/O | |||
CHANNELS | COUNTER/TIMERS | ENCODER | |
4 | — | — |
SOFTWARE | POWER | |
OS SUPPORT | DRIVERS | POWER |
Windows® | Open Layers® SW Suite | Bus powered |
