Description

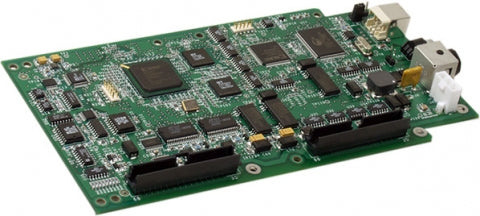

The DT9834 is a series of high-speed, high-performance USB data acquisition (DAQ) modules. These USB DAQ modules are available in a variety of configurations, allowing you to choose the number of analog I/O channels and packaging that suits your application.
Features
- Simultaneous subsystem operation: A/D, D/A, DIO, C/T
- 16SE/8DI analog inputs
- 16-bit resolution
- Fast sampling: 500 kHz
- 32 DIO, 5 C/T
- Optional 16-bit deglitched D/As: 500 kHz/ch for waveform generation
- ±500V galvanic isolation
- OEM, BNC, or STP packaging
- Supported by QuickDAQ application software
- Compatible with LabVIEW™ and MATLAB®
- DT9834-16-4-16-BNC is a KUSB-3116 equivalent
Specifications
Analog Input | ||
Channels | Resolution | Max Sample Rate |
16 SE/8 DIFF | 16-bit | 500 kS/s |
Sampling | Ranges | Isolation |
Multiplexed | ±10 V, ±5 V, ±2.5 V, ±1.25 V | ±500 V ch-ground |
Analog Output | ||
Channels | Resolution | Speed |
Up to 4 | 16-bit | Up to 500 kS/s/ch |
Digital I/O | ||
Channels | Counter/Timers | Encoder |
32 | 5 | — |
