Description
The DT9836 is a series of high-speed, high-performance USB data acquisition (DAQ) modules that provide simultaneous analog input operation at up to 225 kSamples/s per channel. Each analog input has its own A/D converter to eliminate phase shift between channels and to allow you to correlate measurements at the exact same instant in time. Each USB DAQ module features three quadrature decoders for measuring absolute and relative position and for detecting rotational speed.
Features
- 6 or 12 Simultaneous, 16-bit A/D channels
- 2 or 4 Simultaneous, 16-bit deglitched D/A channels
- Fast sampling rates: 225 kS/s/channel
- Two 32-bit C/T, three 32-bit quad decoders
- 32 digital I/O lines
- ±500V galvanic isolation...prevents ground loops
- Simultaneous subsystem operation: A/D, D/A, DIO, C/T, Q/D

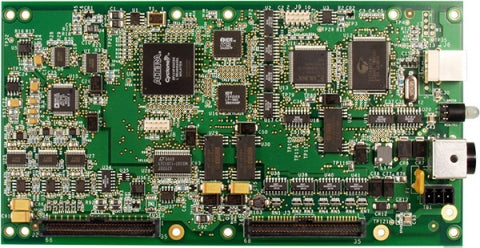

- OEM board-level only version available
- Supported by QuickDAQ application software
Specifications
ANALOG INPUT | ||
CHANNELS | RESOLUTION | MAX SAMPLE RATE |
Up to 12 | 16-bit | 225 kS/s/ch |
SAMPLING | RANGES | ISOLATION |
Simultaneous | ±10 V, ±5 V | ±500 V ch-ground |
ANALOG OUTPUT | ||
CHANNELS | RESOLUTION | SPEED |
Up to 4 | 16-bit | Up to 500 kS/s/ch |
DIGITAL I/O | ||
CHANNELS | COUNTER/TIMERS | ENCODER |
32 | 2 | 3 |
SOFTWARE | POWER | |
OS SUPPORT | DRIVERS | POWER |
Windows® | Open Layers® SW Suite | External |
