Description
The DT9837 Series high accuracy dynamic signal acquisition modules are ideal for portable noise, vibration, and acoustic measurements. Four, 24-bit, IEPE (ICP®) sensor inputs are synchronized with a tachometer input (depending on the model selected) to provide data streams that are matched in time. These rugged, small modules are USB powered, making them ideal for portable measurement applications.
Features
- 4 Simultaneous, 24-bit Delta-Sigma A/D channels
- Support for IEPE inputs, including use of a 4mA current source
- Up to 105.4 kHz per channel
- Tachometer input support in the A/D data stream
- Sync multiple modules for channel expansion using RJ45 synchronization (LVDS) connector

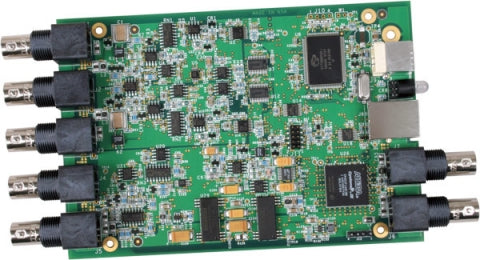

- BNC or OEM options available
- Powered by USB
- Includes software and drivers
- Supported by QuickDAQ application software
Specifications
ANALOG INPUT | |||
CHANNELS | RESOLUTION | MAX SAMPLE RATE | SAMPLING |
4 | 24-bit | Up to 105.4 kS/s/ch | Simultaneous |
ISOLATION | SNR | THD | SFDR |
— | 95 dB Typ. | -104 dB Typ. | 110 dBFS Typ. |
ANALOG OUTPUT | |||
CHANNELS | RESOLUTION | SPEED | |
DIGITAL I/O | |||
CHANNELS | COUNTER/TIMERS | TACHOMETER | |
— | — | 1 |
SOFTWARE | POWER | |
OS SUPPORT | DRIVERS | POWER |
Windows® | Open Layers® SW Suite |
Bus powered |
