Simple Data Logging Package for use with DCON and Modbus Based products.
Subtotal: £172.00

Free Shipping

Free standard shipping on orders over £500

Free Returns

30 Day Money Back Guarantee
EZDataLogger Data Logging software (Professional)

EZDataLogger Data Logging software (Professional)

£172.00
EZDataLogger Data Logging software (Professional)

EZDataLogger Data Logging software (Professional)

£172.00
Description
Description
x

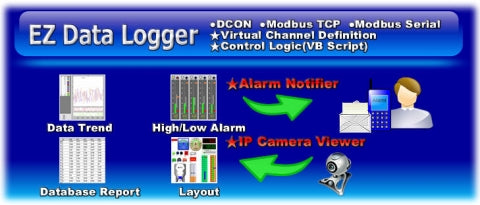

EZ Data Logger is a small data logging software package which can be applied to small remote I/O systems. With its user-friendly interface, users can quickly and easily build a data logging application without any programming skill.

PRO version required for 3rd Party Modbus devices.

Features
Features
x
  • Support DCON, Modbus RTU, Modbus Ascii, Modbus TCP(support IP and Domain name) protocols.
  • Support mutiple COM Ports and TCP/IP connections.
  • Support Virtual Channel definition.
  • User can operate the data into the virtual channel by channel tag names easily. For example: VC3 = (AI_2 + AI_3) / 2.
  • Support Control Logic (VB Script)
    User can edit the script to set the output values or to caculate data into virtual channels. You can get/set the channel values by channel tag names. For example : If AI_2 > 50 Then DO_3 = 1
  • Support Alarm Notifier (by sending SMS or E-Mail)
    User can set the engineer's cell phone number and email address. When the channel value over the alarm value or back to normal, the contact messanger will send a message by SMS (using GSM Modem with PDU mode supported) or by E-Mail(using ethernet).
  • Flexible module configuration
    Each module and I/O point can have different description and color.
  • Flexible workgroup configuration
    Each channel can be assigned to any workgroup.
  • Real time data trend (with zoom in and zoom out)
    Each trend line can store more than 86400 records.
  • Layout view
    User can set back picture and drag-drop I/O points to the mapping place. User can also change the channel layout object as Linear Gauge, Angular Gauge, Toggle, Number LED.....
  • IP Camera Viewer
    User can add an IP camera's web address, and then add it to group. Then the layout display will show the web page in a sub window.
  • Access database supported
    The database also can be exported to Excel file or CVS file.
  • Support Remote SQL Server and MySQL
    Users can log data to the SQL Server or MySQL. People can query the data on an aspx page by IE browser.

  • Reporter
    Can print the trend line or data from the database.
  • High/Low alarm with audio warning
    Each AI channel can have its own high/low limitation. Once the AI value over high limitation or below low limitation, the alarm light will be triggered with audio. The alarm status will keep warning till users switch off the alarm light.
  • Can search for DCON modules and M7000 serial modules
    For DCON modules,7000, 87K, 8000 modules can be searched.
    For Modbus RTU modules,M7000 serial modules can be searched and automatic setting the gain and offset.
  • Value scaling
    Set gain and offset can scal analog values from volt or amp unit to another physical measurement unit.
    Include calculating function( given 2 points to calculate the gain and offset).
    For example: rpm for rotation, kg for weight.
  • Support 3 level account

Admin
Power User
User
Modify the project
●
â—‹
â—‹
Account management
●
â—‹
â—‹
Start/Stop projects
●
●
â—‹
Set AO/DO values
●
●
â—‹
Switching group pages
●
●
●
● allowed       â—‹ not allowed
  • Simple Programming- All operations are done using a mouse and entering values.



Specifications
Specifications
x
  • Max. 256 Virtual Channels
  • Max..10 Web Camera's
  • Max. 10 Alarm contacts (for e-mail/SMS)
  • Max. 1024 I/O Channels
  • Support via e-mail.
