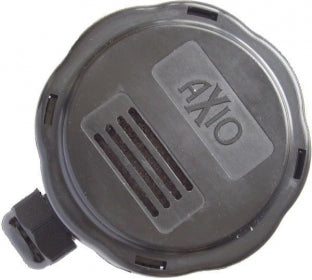

GS-CM-V Carbon Monoxide Sensor - Voltage Output

The GS-CM-V Carbon Monoxide Voltage Transmitter provides a linear output signal for CO levels from 0-300ppm. The output voltage is configurable for either 0-5Vdc, 2-10Vdc or 0-10Vdc. Options include relay(s) with set trip points and an LCD Display. The sensor module uses a plug-in connectors, making for simple in-the-field replacement.

The unit can be mouned with the cable gland entry pointing up or down.

Please contact us regarding the options mentioned.

This can be used with many of our wide range of Data Acquisition units or Data Loggers.

• Monitors CO levels over a range of 0-300ppm
• 0-5, 2-10 or 0-10Vdc selectable voltage output
• Electrochemical sensing element
• 24Vac/dc powered
• Relay option with jumper set alarm levels  (-VR version)
• 4 digit LCD Display (-L version)
• Easy maintenance and 3 year exchange option
• Open collector Fault output
• Easy installation with plug-in connections
• Sensor is UL recognised component UL2034,UL2075,E240671
• 3 Year Warranty

• Sensor type Electrochemical 3-electrode
• Output 0-5Vdc, 2-10Vdc or 0-10Vdc at 5mA maximum load
• -VR Model only : Relay (Optional) SPCO relay, 230Vac 5A(Resistive)
• -VR Model only : Relay trip points (Relay option only) 25, 60, 150 ppm
• Fault Output  Open collector, 30Vdc at 100mA maximum
• -L Model (option) LCD: 4 Digit 9mm high character, backlit LCD of reading in ppm.
• Output range 0-300ppm CO
• Output accuracy +/- 5ppm or +/- 5% Reading (whichever is greater) between 0 & 50'C
• Output stability <5% signal drift per year
• Typical coverage area 700m2 or 15m radius
• Settling time 3 minutes after power up
• Life expectancy >3 years dependant on environment
• Power supply 24Vac ±10%, 100mA maximum or 24Vdc ±10%, 60mA maximum
• Ambient temperature and humidity range 0-50°C, 15-90% RH non-condensing
• Housing Flame retardant ABS, IP65, White (Black is an option)
• Dimensions & Weight: 92mm diameter x 52mm, 170g
• Terminals: Rising clamp for 0.5 - 1.5mm²
• Country of Origin: UK

GS-CM-V-65 Carbon Monoxide Sensor Datasheet
