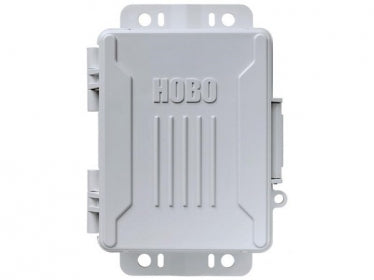

H21-USB Hobo Micro Weather Station


Price:
Sale price£307.00

Description

Rugged and compact, the redesigned HOBO USB Micro Station is a weatherproof data logger for multi-channel monitoring of microclimates. This battery-powered station accepts up to five plug-and-play Smart Sensors and has a hinged door to make sensor installation simple and quick. The Micro Station is equipped with a built-in USB port for fast, efficient data readout to a computer, and an integrated mounting tabs for easy installation.
H21-USB App2H21-USB App1

NOTE: Extra Smart Sensor ports can be added by using the S-ADAPT-6 Consolidator Box.

Outdoor Measurements

  •  Pulse Input
    (Energy/Flow Meters)

 Please contact us for information and pricing on the sensors, mounting masts etc.

Features

  • Compact size for easy deployment
  • Weatherproof IP66 enclosure for harsh environments
  • Direct USB offload--no need for an adapter cable
  • Includes five smart sensor inputs
  • Hinged door and integrated mounting tabs
  • Runs for up to a year on four standard AA batteries
  • Compatible with HOBOware (Free download) and HOBOware Pro software for logger setup, graphing and analysis

Specifications

Operating Range -20° to 50°C (-4° to 122°F) with alkaline batteries
-40 to 70°C (-40 to 158°F) with lithium batteries
Smart Sensor Connectors 5

Smart Sensor Network Cable Length

100 m (328 ft) maximum

Logging Interval

1 second to 18 hours

Start Modes

Immediate, at interval, push button, or delayed start

Memory Modes

Stop when full or wrap when full

Memory

512 KB nonvolatile flash data storage

Time Accuracy

0 to 2 seconds for the first data point and ±5 seconds per week at 25°C (77°F)

Battery Type

 Four AA 1.5 V alkaline batteries for operating conditions of -20° to 50°C (-4° to 122°F); four AA 1.5 V lithium batteries for operating conditions of -40 to 70°C (-40 to 158°F)

Battery Life

1 year, typical use (up to five sensors with 1 minute or greater logging interval)

Communication Type

USB 2.0 interface

Full Memory Download Time

4 minutes

Enclosure Access

Hinged door secured by one latch with eyelet for use with user-supplied padlock

Materials

Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge pins; Gaskets: Silicone rubber; Cable channel: EPDM rubber

Dimensions

17.04 x 11.94 x 4.47 cm (6.71 x 4.70 x 1.76 in.) see diagrams in manual
Padlock hole diameter: 0.58 cm (0.23 in.)

Weight

414g (14.6 oz.)

Environmental Rating

Weatherproof enclosure, NEMA 4X and IP66



Technical

Micro Weather Station Datasheet
