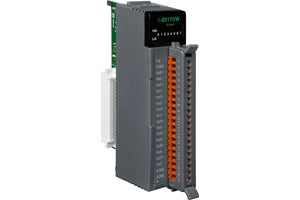

I-8017HW Analog Input Module : 8-channel , 14-bit


Price:
Sale price£255.00

Description

The I-8017HW is a high performance analog input module.

Up to 16-channel single-ended or 8-channel differential inputs can be connected to one module. It features 14-bit resolution, 100Ks/s sampling rates and provides isolation protection of 2500 Vrms.

Features

  • Parallel I/O Module
  • Resolution: 14-bit
  • Input impedance: 200K
  • Accuracy: ±0.1% of FSR
  • Isolation Voltage: 3000Vdc
  • Power Consumption: 2W
  • LED Display : 1 x Power, 16 x High/Low Alarm

Specifications



Analog Input
Input Channels 16-ch Single-ended/8-ch Differential
Voltage Input Range +/- 10V, +/- 5V, +/- 2.5V, +/- 1.25V
Current Input Range +20 ~ -20 mA Requires Optional External 125 Ohm Resistor Jumper Select
Resolution 14-bit
Sample Rate Single Channel Polling Mode :100K S/s
Single Channel Interrupt Mode: 50K S/s
8 channel Scan Mode : 16 K S/s
Accuracy ±0.1% of FSR
Zero drift ± 0.1uV/°C
Span drift ± 10ppm/°C
ESD Protection 4KV
Input Impedance 20K, 200K, 20M(Jumper Select)
Input Bandwidth 100 KHz
Intra-module Isolation, Field to Logic 2500 VDC
Connector 20 Pin Terminal block D-sub 37 Pin
LED Display
1 LED as Power Indicator/16 LED as Status Indicator
Power
Power Consumption 2W Max
Environment
Operating Temperature -25 ~ 75 °C
Storage Temperature -30 ~ 75 °C
Humidity 5 ~ 95%, Non-condensing
Dimensions
30 mm x 102 mm x 115 mm (W x L x H) Detail
Models I-8017HW I-8017HCW I-8017DW



Technical

I-8017HW Datasheet


Applications

  • High speed data acquisition system
  • Process monitor and control
  • Vibration analysis
  • Digital pattern generator from digital I/O port
