Description

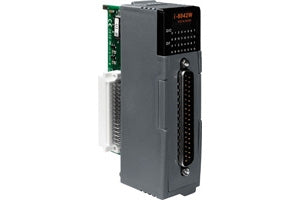

The I-8042W is a plug-in parallel bus Isolated Digital I/O unit, providing 16 Inputs and 16 Outputs for use with any ICPCON Programmable Automation Controller unit (PAC).
Specifications
Digital Input |
|
Input Channels |
16 (Sink/ source) |
Input Type |
One common for all Inputs |
On Voltage Level |
+10V ~ 30V |
Off Voltage Level |
+4V max |
Input Impedance |
3K Ohms, 0.33W |
Intra-module Isolation, Field to Logic |
3750Vrms |
4KV ESD Protection |
Contact for each channel |
Digital Onput |
|
Output Channels |
16 (Sink) |
Output Type |
Open-collector |
Max Load Current |
100 mA/ Channel |
Load Voltage |
5Vdc to 30Vdc |
Intra-module Isolation, Field to Logic |
3750Vrms |
4KV ESD Protection |
Contact for each channel |
LED Display |
|
1 LED as Power Indicator |
|
32 LEDs as Digital Input and Output Indicators |
|
Power |
|
Power Consumption |
0.3A @ 5V = 1.5W ,+/- 5% For Hardware |
Environment |
|
Operating Temperature |
-25 to 75 °C |
Storage Temperature |
-30 to 75 °C |
Humidity |
5 to 95%, Non-condensing |
Dimensions |
|
30mm x 85mm x 114mm (W x L x H) |
