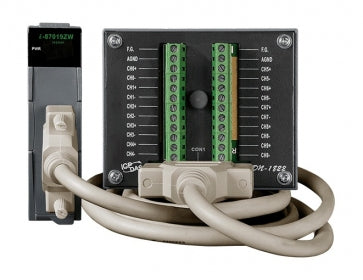

I-87019ZW/S2 10-channel Universal Analog Input Module (+ DN-1822 DIN Terminal unit)

The I-87019ZW is a 10-channel universal analog input module with an RS-485 interface that is a specially designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field.

Apart from the thermocouple inputs, the I-87019ZW also supports voltage and current inputs. The voltage input range can be form +/-15 mV to +/-10 V, and the current input range can be either 4 ~ 20 mA, 0 ~ 20 mA, or +/- 20 mA. Up to 10 analog inputs of different types can be connected to a single module. Overvoltage protection of up to 240 Vrms is provided. The module also features per-channel open wire detection for thermocouple and 4 ~ 20 mA inputs.

• 10-channel Analog Input
• Individual Channel Configuration
• Open Thermocouple Detection
• Temperature Output Consistency
• Stable Temperature Output in the Field
• 240 Vrms Overvoltage Protection
• Jumper Selectable Voltage or Current Input
• Dual Watchdog

I-87019ZW series Analog input modules datasheet

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
