Description

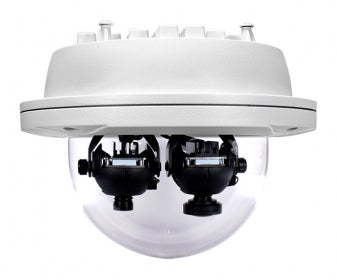

Panorama and detail, iCAM-760D dual lens camera provides a professional single camera solution.
Integrated with Dual 5-Megapixel sensors, one equipped with f 1.05 mm non-linear fisheye lens offers 180/360 degree dewarped image (single or multiple). For the other sensor, lens is 6, 8, 12, 16 mm optional. Dual sensors gimbals work independently and can be configured to almost any direction, and dewarping algorithms are 180/360 degree selectable depends on fisheye lens configuration. Wide Dynamic Range and IR cut removable are available for both sensors.
iCAM-760D offers a professional and efficient solution for commercial, industrial, and public areas.
Features
- x 5 Megapixel Progressive CMOS Sensor
- Smooth 15 fps @ High 7.3 Megapixels Resolution (3840 x 1920)
- H.264/MJPEG Dual Codec
- 1.05 mm non-liner Fisheye Lens + 6/8/12/16 mm Fixedfocal Lens
- Removable IR Cut, Day & Night Function for Both Sensors
- eWDR Image Enhancement for Extreme Lighting Condition (too Bright/Dark)
- Various Display Modes Selectable for Different Applications
- ePTZ, Auto Pan, Auto Patrol Function on Fisheye Lens
- Two-way Audio
- Built-in MicroSD Card Slot, support SDHC/SDXC 64GB or above
- Weather-proof IP66-rated Outdoor Housing
- Built-in 802.3af Compliant PoE
- ONVIF 2.2 Compliant for interoperability
Specifications
| Alarm and Event | |
|---|---|
| Alarm Events | Digital output, Files uploaded via HTTP, SMTP, FTP and NAS server |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification |
| Camera | |
|---|---|
| Aperture |
· Fixed-Focal Lens Type: F1.6, Fixed-IRIS · Panoramic Lens Type: F2.8, Fixed-IRIS |
| Field of View |
· Horizontal angle of view: 54°/41°/28°/22° · Angle of view: 186±4° (D/H/V) |
| Image Sensor | 2 x 1/2.5”, CMOS |
| Lens |
· Fixed-Focal Lens Type: f = 6/8/12/16 mm · Panoramic Lens Type: f = 1.05 mm |
| Max. Resolution | 7.37 MEGA: 3840 x 1920 @ 15fps |
| Audio | |
|---|---|
| Capability | Audio input/output (full duplex) |
| Network | |
|---|---|
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, ARP, RTSP, RTP, UPnP, ONVIF (Profile S), Multicast |
| ONVIF | Ver. 2.2 and above |
| Video | |
|---|---|
| Streams |
2 simultaneous streams Stream 1: 3840 x 1920 @ 15fps Stream 2: 480 x 240 @ 15fps |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10 Base-T/100 BaseTX Ethernet |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 200 x 153.5 mm |
| Ingress Protection Rating |
· Indoor: IP54 · Outdoor: IP66 with optional 6" dome housing |
| Environmental | |
|---|---|
| Operating Temperature |
Starting: -10°C ~ 50°C Working: -40°C ~ 50°C |
| Humidity | 10% ~ 80% |
Technical
iCAM-760D Dual Lens Panoramic Dome Network Camera Datasheet
Applications
WISE Surveillance Solution With iCAM Camera
A general surveillance system on current market usually features separated systems: the camera DVR/NVR as a system, and the I/O monitoring as another system; each system operates independently. For now the DVR/NVR system of the camera usually records video for 24H/7Day without interruption, it requires huge storage space and sufficient network bandwidth; therefore the system implementation fee is usually high. In addition, when playback a certain video, it does not allow to search the suspicious activities of related I/O (temperature, doors and windows switch, water level, etc.) at the same time.
ICP DAS WISE surveillance solution integrates logic control, I/O, camera and data log in one single WISE controller. WISE allows two-way interactions between the I/O and the camera; it enables to record a piece of video or to take images when there is an event triggered by either I/O condition or ROI (Region of Interest) by camera. In this way, the storage size can be reduced significantly and the connection between I/O event and Video/Image can be built for easy query.
Click to view the WISE_iCAM DM.
| ICP DAS WISE Surveillance Solution | Regular Surveillance Solution |
|---|---|
|
