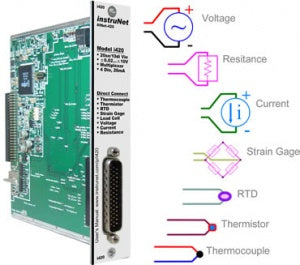

iNet-420 InstruNet Voltage Card, 10 AI, 4 DIO channels

Plug-in multiplexer card for InstruNet-400 system which provides additional Analogue Input Channels (10 differential or  20 Single-ended) plus 4 Universal Digital I/O channels.

Software support is offered within the InstruNet World software, while drivers are available for our Orchestrator SCADA software, along with NI Labview plus DasyLab. An enhanced version of InstruNet World (IW+) can be provided along with the necessary files/demo programs to produce Interfaces in C or VB.

NOTE: The iNet-420 card does not contain its own ADC, so requires an iNet-430 card to be also fitted into the iNet-400 backplane.

• The i420 card plugs into a 4 to 16 slot instruNet i4xx Card Cage, which in turn attaches to a Windows computer
• 20se/10di Voltage Input Channels
• 4x Universal Digital I/O (20mA sink, -10V..30V)
• Connect Directly To Sensors: Voltage,  Thermocouple,  Thermistor, RTD,  Load Cell,  Strain Gauge,  Potentiometer,  Current,  Resistance
• Additional i43x A/D module required to measure voltages
