Description

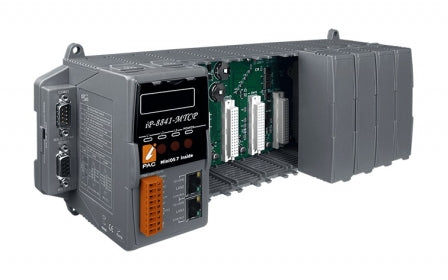

The iP-8841-MTCP series is a Modbus TCP I/O expansion unit to utilisend I-8K and I-87K series I/O modules over the Ethernet for industrial monitoring and controlling applications. There are more than 50 I/O modules supported with the unit, including analog input/output, digital input/output, counter, frequency I/O modules. It is designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10 ~ 30 VDC), isolated power input and can operate under wide temperature (-25 ~ +75 °C). To simplify installation and maintenance of I/O modules, it provides many useful features, such as: auto configuration, LED indicators for fault detection, dual watchdog to keep alive, programmable power on and safe values for safety.
Modbus is a very wide known protocol in the industrial manufacturing and environment monitoring fields. Many SCADA software, HMI and PLC has builtin driver to support Modbus devices.
Also available is a SDK for different platforms, such as Windows XP, Window CE 5.0/6.0, Linux, MiniOS7. Therefore, it is very easy to integrate remote I/O to customer’s applications. Further more, the iP-8841-MTCP is also a c language based programmable controller that equipped a DOS-like OS (MiniOS7). Programmers can use C compilers that can create 16 bit executable file (*.exe) to customize the Modbus firmware which preinstalled in the iP-8441-MTCP. The SDK provides rich functions for Modbus communication, such as Modbus TCP master/slave, Modbus RTU master/salve, Modbus ASCII master/slave, etc.
Features
-
2 independent Ethernet ports
-
Supports Modbus TCP
-
Supports Modbus RTU/ASCII
-
Supports Modbus TCP to RTU Gateway
-
Auto Configuration
-
4 I/O Slots for I-8K and I-87K Series Modules
-
Operating Temperature: -25 ~ +75 °C
Specifications
|
Software
|
|
OS
|
MiniOS7
|
|
Development
|
C Language
|
|
CPU Module
|
|
CPU
|
80186 or compatible, 16-bit and 80 MHz
|
|
EEPROM
|
16 KB
|
|
Flash
|
512 KB
|
|
NVRAM
|
31 Bytes
|
|
SRAM
|
768 KB SRAM, 512 KB Dual battery backup SRAM
|
|
Storage Expansion
|
4 GB microSD card (up to 32 GB)
|
|
Real Time Clock
|
Provide seconds, minutes, hours, dates, day of week, month, year
|
|
Watchdog Timer
|
Yes
|
|
Display
|
|
Type
|
5 x Digit 7 Segment LED Display
|
|
LED Indicators
|
|
Status
|
1 x Run, 1 x Module offline, 1 x WDT, 1 x Power
|
|
I/O Expansion
|
|
I/O Type
|
I-8K, I-87K series
|
|
Slots
|
8
|
|
COM Ports
|
|
Ports
|
2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485
|
|
Protocol
|
Modbus RTU/ASCII Slave
|
|
HMI
|
|
Buzzer
|
Yes
|
|
DIP Switch
|
8-bit for address
|
|
Push Button
|
4
|
|
Ethernet
|
|
Ports
|
2 x RJ-45, 10/100 Base-TX
|
|
Protocol
|
Modbus TCP Slave, Modbus TCP to RTU Gateway
|
|
Power
|
|
Input Range
|
+10 ~ 30 VDC (1 kV Isolated )
|
|
Redundant Power Inputs
|
Yes
|
|
Consumption
|
7.2 W
|
