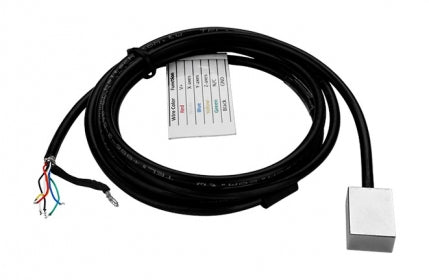

iSN-703-F1-L015 3-axis MEMS Accelerometer


Price:
Sale price£371.00

Description

iSN-703-F1-L015 is a high sensitivity accelerometer, and it is also a triaxial accelerometer that simultaneously measures vibration in three orthogonal axes. This sensor is designed primarily for vibration analysis applications.

Features

  • 3 wire voltage accelerometer
  • Triaxial design
  • Measuring range is ±18g
  • Frequency response ranges from 10Hz to 1kHz

Specifications

Vibration Measurement
Axes 3
Sensor Type MEMS
Amplitude Range ±18g
Frequency Range 10Hz~1KHz
Sensitivity 400mV/g per axis
Bais Voltage 10±0.5VDC
Power
Input Range 22~26VDC,3mA
Mechanical
Dimensions (mm) (15±0.05) x (21±0.05) x (8.5±0.05) (W x L x H)
Cable
Length 1.5m



Technical

iSN-701/703 Accelerometer datasheet
