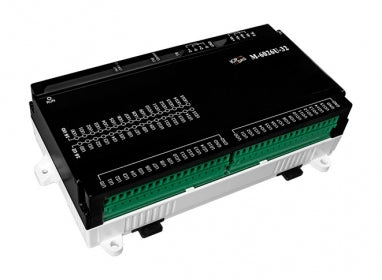

M-6026U-32 16ch Universal Input and 16ch Universal Output Module (MRTU)


Price:
Sale price£461.00

Description

The M-6026U-32 distributed I/O module provides a wide variety of input, output, and smart control solutions, all of which are based on a single universal hardware platform.

The M-6026U-32 combines inputs and outputs, saving your time and space when both are at a premium. Since M-6032U-32 features both inputs and outputs on the same board, retailers can reduce the space requirement for I/O boards by as much as 50%! Traditional I/O board schemes required retail operators to mount separate input and output boards within an enclosure, increasing the time and cost to mount the boards. The M-6000 I/O boards are communications devices needed to connect to the facility management system to control refrigeration, HVAC and lighting systems.

Features

  • Universal Inputs and Universal Outputs
  • Status LED for Universal Inputs and Outputs
  • Each Universal Input Channel Can be Used as an Analog Input or Digital Input
  • Supports Modbus RTU Protocol
  • Easy Mounting and Connection
  • Provides I/O Space-Saving Design

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
EMS Protection
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
±8 kV Air for Random Point
LED Indicators
Status 1 x Power and Communication
Analog Input
Channels 16, universal for AI and DI
Type Voltage
Current
Range Voltage: 0 ~ 2.5V, 0 ~ 5 V, 0 ~ 10 V
Current: 0 to 20 mA, 4 to 20 mA
RTD: Pt1000 (2-wire)
Resolution 16-bit
Accuracy ±0.1% of FSR
Overvoltage Protection 100 VDC
Analog Output
Channels 16
Type Voltage
Current
Range Voltage: 0 to 10 V
Current: 0 to 20 mA, 4 to 20 mA
Resolution 12-bit
Accuracy ±0.2% of FSR
Open Wire Detection For 4 to 20 mA only
Voltage Output Capability 10 V@ 20mA
Digital Input
Channels 16, universal for AI and DI
Type Dry Contact
ON Voltage Level Close to GND
OFF Voltage Level Open
Fuse Protection 1 A
COM Ports
Ports 1 x RS-485
Baud Rate 1200 to 115200 bps
Data Format (N, 8, 1)
Protocol Modbus RTU
Power
Consumption
