Description
The MCC 118-OEM provides eight single-ended (SE) analog inputs for voltage measurements with sample rates up to 100 kS/s for taking single point or waveform voltage measurements. Up to eight MCC HATs can be stacked onto one Raspberry Pi providing up to 64 channels of data and a maximum throughput of 320 kS/s.

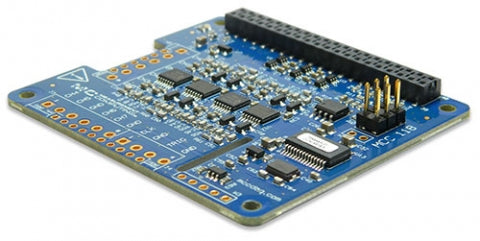

The MCC 118-OEM is functionally equivalent to the standard version. The only difference is the screw terminal connectors have been removed. The OEM version is designed with unpopulated connectors for customers who want to add their own header type connectors. The board accepts 1x6 and 1x10 0.1” spacing header connectors.
NOTE: Raspberry Pi is not included with the MCC 118-OEM.
NOTE: Raspberry Pi is not included with the MCC 118-OEM.
Features
- Eight 12-bit voltage inputs
- Sample rate up to 100 kS/s
- ±10 V input range
- Onboard sample buffers allow high-speed acquisition
- External scan clock I/O
- External digital trigger input
- Unpopulated signal connectors
- Ability to stack up to eight MCC HATs onto a single Raspberry Pi for a maximum throughput of 320 kS/s
Included in the package:
- Getting Started guide
- Hardware required to connect to a Raspberry Pi (connector, standoffs, screws, nuts, and jumpers)
System Requirements: Raspberry Pi A+, B+, 2, 3 or later
Specifications
| ANALOG INPUT | ||||
| CHANNELS | RESOLUTION | MAX SAMPLE RATE | ||
| 8 SE | 12-bit | 100 kS/s | ||
| SAMPLING | RANGES | ISOLATION | ||
| Multiplexed | ±10 V | — | ||
| ANALOG OUTPUT | ||||
| CHANNELS | RESOLUTION | SPEED | ||
| — | — | — | ||
| DIGITAL I/O | ||||
| CHANNELS | COUNTER/TIMERS | ENCODER | ||
| — | — | — | ||
| SOFTWARE | POWER | |
| OS SUPPORT | DRIVERS | POWER |
| Linux®, Raspbian® | DAQ HAT Library™ | 3.3 V provided by Rpi |
Technical
MCC-118 Voltage Measurement DAQ for Raspberry Pi® Datasheet
MCC DAQ HAT White Paper
