MCC-118 Voltage Measurement DAQ HAT for Raspberry Pi


Price:
Sale price£107.00

Description

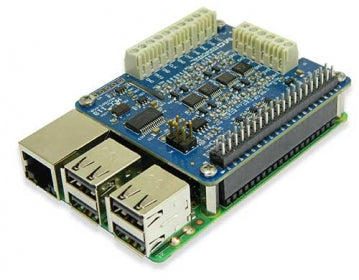

The MCC 118 DAQ HAT provides eight channels of analog voltage measurement for Raspberry Pi based data acquisition / data logger systems. The MCC 118 maximum data rate is 100 kS/s per board for taking single point or waveform voltage measurements. Up to eight MCC 118 devices can be stacked - providing up to 64 channels of data and a maximum throughput of 320 kS/s.


All MCC DAQ HATs provide easy-to-use C/C++® and Python™ open-source libraries and examples allowing you to take reliable, quality measurements quickly.


NOTE: Raspberry Pi is not included with the MCC 118.

Features

  • Eight 12-bit voltage inputs
  • Sample rate up to 100 kS/s
  • ±10 V input range
  • Onboard sample buffers allow high-speed acquisition
  • External scan clock I/O
  • External digital trigger input
  • Screw terminal connections
  • Ability to stack up to eight MCC HATs onto a single Raspberry Pi for a maximum throughput of 320 kS/s

Included in the package
  • Getting Started Guide
  • Hardware required to connect to a Raspberry Pi (connector, standoffs, screws, nuts, and jumpers)



Specifications

ANALOG INPUT
CHANNELS RESOLUTION MAX SAMPLE RATE
8 SE 12-bit 100 kS/s
SAMPLING RANGES ISOLATION
Multiplexed ±10 V
ANALOG OUTPUT
CHANNELS RESOLUTION SPEED
DIGITAL I/O
CHANNELS COUNTER/TIMERS ENCODER
SOFTWARE POWER
OS SUPPORT DRIVERS POWER
Linux®, Raspbian® DAQ HAT Library™ 3.3 V provided by Rpi



Technical

MCC-118 Voltage Measurement DAQ for Raspberry Pi® Datasheet

MCC DAQ HAT White Paper

MCC DAQ Library Help
