Description

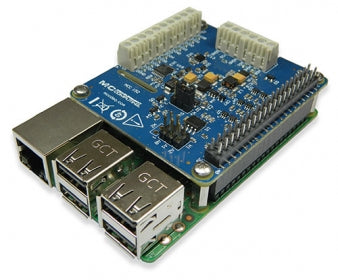

The MCC 152 Voltage Output and DIO HAT provides two channels of analog voltage output and eight digital I/O for Raspberry Pi based systems. The 12-bit voltage outputs feature a 0-5 V range and can be updated at up to 5 kS/s. Up to eight MCC DAQ HAT devices can be stacked onto one Raspberry Pi.
All MCC DAQ HATs provide easy-to-use C/C++® and Python™ open-source libraries and examples allowing you to take reliable, quality measurements quickly.
NOTE: Raspberry Pi is not included with the MCC 152.
Features
- Two 12-bit voltage outputs
- Update at up to 5 kS/s Software paced
- 0-5 V output range
- Eight Digital I/O (each bit configurable as input or output)
- Screw terminal connections
- Ability to stack up to eight MCC HATs onto a single Raspberry Pi for a maximum throughput of 320 kS/s
- Getting Started Guide
- Hardware required to connect to a Raspberry Pi (connector, standoffs, screws, nuts, and jumpers)
Specifications
ANALOG OUTPUT | ||||
CHANNELS | RESOLUTION | SPEED | ||
2 | 12-bit | 5 kS/s — SW paced | ||
DIGITAL I/O | ||||
CHANNELS | COUNTER/TIMERS | ENCODER | ||
8 | — | — |
SOFTWARE | POWER | |
OS SUPPORT | DRIVERS | POWER |
Linux®, Raspbian® | DAQ HAT Library™ | 3.3 V provided by Rpi |
