Description

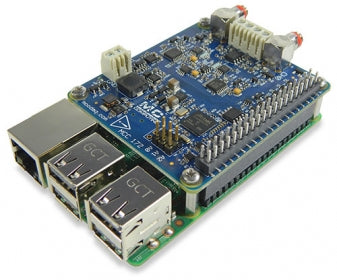

The MCC 172 is a two channel DAQ HAT for making sound and vibration measurements from IEPE sensors like accelerometers and microphones. It features a 24-bit A/D per channel and a maximum sample rate of 51.2 kS/s/Ch. Up to eight MCC HATs can be stacked onto one Raspberry Pi allowing users to create high-channel count, multifunction solutions of different signal types.
All MCC DAQ HATs include easy-to-use C/C++® and Python™ open-source libraries and examples for taking reliable, quality measurements quickly.
NOTE: Raspberry Pi is not included with the MCC 172.
Features
- Two 24-bit IEPE inputs
- A/D per channel for simultaneous sampling
- Sample rate up to 51.2 kS/s/ch
- One external, digital trigger input
- 10-32 and screw terminal connections (Optional cable ACC-172 is available- 10-32 to BNC cable, 2 pcs)
- Ability to stack up to eight MCC HATs onto a single Raspberry Pi with a max aggregate throughput of 307.2 kS/s
Included in the package
- Getting started guide
- Hardware required to connect to a Raspberry Pi (connector, standoffs, screws, nuts, and jumpers) 2)
System Requirements: Raspberry Pi A+, B+, 2, 3 or later
Specifications
| ANALOG INPUT | |||
| CHANNELS | RESOLUTION | MAX SAMPLE RATE | SAMPLING |
| 2 IEPE | 24-bit | Up to 51.2 kS/s/ch | Simultaneous |
| ISOLATION | SNR | THD | SFDR |
| — | 100 dB Typ. | -93 dB Typ. | 120 dBFS Typ. |
| DIGITAL I/O | |||
| CHANNELS | COUNTER/TIMERS | TACHOMETER | |
| 1 | — | — | |
| SOFTWARE | POWER | |
| OS SUPPORT | DRIVERS | POWER |
| Linux®, Raspbian® | DAQ HAT Library™ | 3.3 V provided by Rpi |
