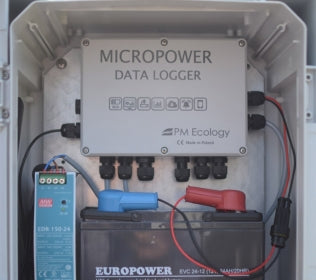

MicroP-dl-En GSM Weather Station & Data Logger (encl+battery)

• Excellent energy efficiency
• 4 configurable inputs (0-10V, 4-20mA, pulse)
• SDI-12 port for additional sensors (up to 15)
• RS-232 and RS485 (optional) with MODBUS RTU protocol
• Integrated GSM/GPRS modem for data transmission
• Integrated PV charger with MPPT
• Full online configuration (includes 12 month subscription)
• Free API's to allow data sending and interfacing to 3rd Party Server
• Optional board with additional SDI-12, PT100, 0-10V, 4-20mA and pulse inputs.
• Direct data transmission to user's server
• Threshold text and email alerts

Inputs

• 4 x analogue/digital : 0-3V, 0-10V, 4-20mA, pulse counter
• 1 x SDI-12 :up to 15 values
• 1 x serial:  RS232, MODBUS RTU
• Extension board (optional) : additional analogue, digital, SDI-12, pt100 inputs additional functionalities and components (LCD screen, WiFi, Bluetooth, etc.)

Communications

• Built-in modem: 2G (GSM/EDGE) 4 band frequencies 850/900/1800/1900MHz
• Antenna connector: MMCX
• Transmit Time Interval (TTI): defined by user in range: (1min…….24h)
• GSM network APN: user configurable
• modem working time: 20...30s typically
• Serial communication: RS232, Modbus RTU
• USB: USB-B for data retrieval and APN settings

Data Logger

• Measuring Time Interval (MTI): defined by user in range: (1min…24h)
• Internal memory: up to 50 000 records
• Logged maintenance parameters: Electronics’ temperature, power supply voltage, GSM signal, modem activity during last data transfer, cabinet door open (optional)
• Alarms (SMS, email): For all measured parameters and maintenance parameters

Power

• Input range: 5-30V
• Required input current: 0.2A
• Protection: OVP , OCP , reverse polarity, EMI/EMC filter
• Power consumption (measured at 12V):
  Standby mode: ≤ 250μW
  Measurement mode: ≤ 20mW (sensors' power consumption not included)
  Transmission mode: ≤ 360mW (depends on network signal strength)
• PV panel charger: Built-in solar charger enables direct connection of a PV panel up to 5W
• Approx. working time without battery (35Ah) replacement/recharging:
  TTI – 60min, MTI – 10min            >5 years
  TTI – 10min, MTI – 10min            >2 years

• Working temperature: -40°…+60°C
• Enclosure: ABS, IP65, IP67 (optional), IP68 (optional)
• Dimensions: 176x150x58mm
• Compliance information: Declaration of conformity (CE)
