Description
The HOBO® MX2001 is a water level data logger designed for convenient wireless setup and download from mobile devices via Bluetooth Low Energy.
The logger dramatically simplifies and lowers the cost of field data collection by providing wireless access to high-accuracy water level and temperature measurements right from a mobile phone or tablet (Android & iOS App's available).

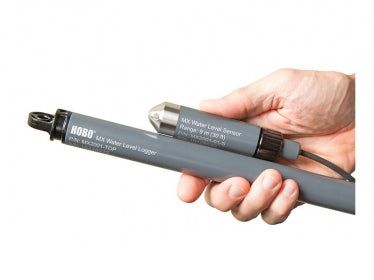

The MX2001 logger consists of a top-end unit and a water level sensor which are sold as a set, plus a direct read cable to connect them. Cables (required) can be ordered in lengths from 0.2 to 500m for deployment in a wide range of wells. Standard lengths can be found in the Recommended Products section below.
Features
- Wireless data offload to mobile devices using Bluetooth Low Energy
- Integrated barometric pressure sensor enables direct water level readout
-
Direct read cable connects sensor to top-end logger/transmitter
- The cable includes Kevlar strength member
- Cables are interchangeable so loggers are easy to redeploy in future applications
- The logger and sensor add 0.39 meters to the length of the cable
- Cable length can vary up to 3% from the length ordered
- The 1, 5, 10, 15, 30 and 60 meter cable lengths are standard; custom cable lengths are available, but on a longer lead time
- Reference water level can be entered at the start of the deployment
- Use HOBOmobile for setup, data viewing and data sharing
- Powered by two user-replaceable AA batteries in the top-end unit
- Several logging modes: normal, multi-rate logging and event-triggered burst-logging
- Durable ceramic sensor
- Available with stainless steel or titanium sensor ends
- 3-point NIST-traceable calibration certificate included for the water pressure sensor
Specifications
|
Pressure (Absolute) and Water Level Measurements MX2001-01-S and MX2001-01-Ti-S - 9 Meter (30') range? |
||||
|
Operation Range |
0 to 207 kPa (0 to 30 psia); approximately 0 to 9 m (0 to 30 ft) of water depth at sea level, or 0 to 12 m (0 to 40 ft) of water at 3,000 m (10,000 ft) of altitude |
|||
|
Factory Calibrated Range |
69 to 207 kPa (10 to 30 psia), 0° to 40°C (32° to 104°F) |
|||
|
Burst Pressure |
310 kPa (45 psia) or 18 m (60 ft) depth |
|||
|
Water Level Accuracy* |
Typical error: ±0.05% FS, 0.5 cm (0.015 ft) water |
|||
|
Raw Pressure Accuracy** |
±0.3% FS, 0.62 kPa (0.09 psi) maximum error |
|||
|
Resolution |
<0.02 kPa (0.003 psi), 0.21 cm (0.007 ft) water |
|||
|
Pressure Response Time (90%)*** |
1 second at a stable temperature |
|||
|
Pressure (Absolute) and Water Level Measurements MX2001-02-S - 30 Meter (100') range? |
||||
|
Operation Range |
0 to 400 kPa (0 to 58 psia); approximately 0 to 30.6 m (0 to 100 ft) of water depth at sea level, or 0 to 33.6 m (0 to 111 ft) of water at |
|||
|
Factory Calibrated Range |
69 to 400 kPa (10 to 58 psia), 0° to 40°C (32° to 104°F) |
|||
|
Burst Pressure |
500 kPa (72.5 psia) or 40.8 m (134 ft) depth |
|||
|
Water Level Accuracy* |
Typical error: ±0.05% FS, 1.5 cm (0.05 ft) water |
|||
|
Raw Pressure Accuracy** |
±0.3% FS, 1.20 kPa (0.17 psi) maximum error |
|||
|
Resolution |
0.04 kPa (0.006 psi), 0.41 cm (0.013 ft) water |
|||
|
Pressure Response Time (90%)*** |
1 second at a stable temperature |
|||
|
Pressure (Absolute) and Water Level Measurements MX2001-03-S - 76 Meter (250') range |
||||
|
Operation Range |
0 to 850 kPa (0 to 123.3 psia); approximately 0 to 76.5 m (0 to 251 ft) of water depth at sea level, or 0 to 79.5 m (0 to 262 ft) of water at 3,000 m (10,000 ft) of altitude |
|||
|
Factory Calibrated Range |
69 to 850 kPa (10 to 123.3 psia), 0° to 40°C (32° to 104°F) |
|||
|
Burst Pressure |
1,200 kPa (174 psia) or 112 m (368 ft) depth |
|||
|
Water Level Accuracy* |
Typical error: ±0.05% FS, 3.8 cm (0.125 ft) water |
|||
|
Raw Pressure Accuracy** |
±0.3% FS, 2.55 kPa (0.37 psi) maximum error |
|||
|
Resolution |
<0.085 kPa (0.012 psi), 0.87 cm (0.028 ft) water |
|||
|
Pressure Response Time (90%)*** |
1 second at a stable temperature |
|||
|
Pressure (Absolute) and Water Level Measurements MX2001-04-S and MX2001-04-Ti-S - 4 Meter (13') range? |
||
|
Operation Range |
0 to 145 kPa (0 to 21 psia); approximately 0 to 4 m (0 to 13 ft) of water depth at sea level, or 0 to 7 m (0 to 23 ft) of water at 3,000 m (10,000 ft) of altitude |
|
|
Factory Calibrated Range |
69 to 145 kPa (10 to 21 psia), 0° to 40°C (32° to 104°F) |
|
|
Burst Pressure |
310 kPa (45 psia) or 18 m (60 ft) depth |
|
|
Water Level Accuracy* |
Typical error: ±0.075% FS, 0.3 cm (0.01 ft) water |
|
|
Raw Pressure Accuracy** |
±0.3% FS, 0.43 kPa (0.063 psi) maximum error |
|
|
Resolution |
<0.014 kPa (0.002 psi), 0.14 cm (0.005 ft) water |
|
|
Pressure Response Time (90%)*** |
<1 second at a stable temperature |
|
|
Barometric Pressure (MX2001-TOP) |
||
|
Operation and Calibrated Range |
66 to 107 kPa (9.57 to 15.52 psia); -20° to 50°C (-4° to 122°F) |
|
|
Accuracy |
±0.2 kPa (±0.029 psi) over full temperature range at fixed pressure; maximum error ±0.5% FS |
|
|
Water Level Accuracy* |
Typical error: ±0.075% FS, 0.3 cm (0.01 ft) water |
|
|
Resolution |
0.01 kPa (0.0015 psi) |
|
|
Response Time |
1 second at stable |
|
