Description

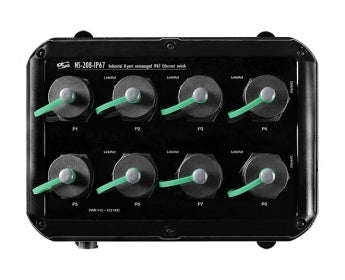

The NS-208-IP67 is designed for industrial applications in harsh environments. The rugged RJ-45 ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock. The Ethernet switch support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.
Features
• Automatic MDI/MDI-X crossover for plug-and-play
• Store-and-forward architecture
• Each port supports both 10/100 Mbps speed auto negotiation
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• Rugged RJ-45 Connector for anti-vibration and shock
• IP67 grade protection approval
Specifications
LED Indicators | |
---|---|
Status | PWR, Link/Act |
Ethernet | |
---|---|
Ports | 8 x RJ-45, 10/100Base-TX |
Standards | IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
Processing Type | Store & forward; wire speed switching |
MAC Addresses | 1024 |
Memory Bandwidth | 2 Gbps |
Frame Buffer Memory | 512 Kbit |
Flow Control | IEEE 802.3x flow control, back pressure flow control |
Isolation | 1500 Vrms 1 minute |
Power | |
---|---|
Reverse Polarity Protection | Yes |
Input Range | +12 ~ +53 VDC |
Consumption | 0.12 A @ 24 VDC |
Mechanical | |
---|---|
Casing | Plastic |
Dimensions (mm) |
DIN-rail mounting: 190 x 133 x 104 (W x L x H) Wall mounting: 190 x 155 x 104 (W x L x H) |
Installation | DIN-rail mounting or wall mounting |
Ingress Protection Rating |
IP67 for Operating Temperature -10 °C ~ +60 °C IP66 for Operating Temperature -40 °C ~ +75 °C |
Environmental | |
---|---|
Operating Temperature |
-10 °C ~ +60 °C (Protection rating IP67) -40 °C ~ +75 °C (Protection rating IP66) |
Storage Temperature |
-10 °C ~ +60 °C (Protection rating IP67) -40 °C ~ +75 °C (Protection rating IP66) |
Humidity |
100% RH for Operating Temperature -10 °C ~ +60 °C 10% ~ 90% RH, non-condensing for Operating Temperature -40 °C ~ +75 °C |
