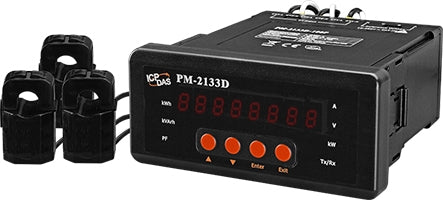

PM-2133D 3-phase Compact Smart Energy Meter, LED Display
PM-2133D 3-phase Compact Smart Energy Meter, LED Display

PM-2133D 3-phase Compact Smart Energy Meter, LED Display

Compact Three Phase Smart Power Meter, ModbusRTU protocol.  LED Display, Bi-directional Energy. Variants and pricing available from Recommended products section (base of page)
Contact for Price

FREE delivery to UK on orders over £500

Or phone us for our best price

0800 048 1057

Free Shipping

Free standard shipping on orders over £500

Free Returns

30 Day Money Back Guarantee
PM-2133D 3-phase Compact Smart Energy Meter, LED Display

PM-2133D 3-phase Compact Smart Energy Meter, LED Display

£303.00
PM-2133D 3-phase Compact Smart Energy Meter, LED Display

PM-2133D 3-phase Compact Smart Energy Meter, LED Display

£303.00
Description
Description
x
Compact Three Phase Smart Power Meter, ModbusRTU protocol.  LED Display, Bi-directional Energy. Variants and pricing available from Recommended products section (base of page)
Features
Features
x
  • True RMS Power Measurements
  • Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
  • Current Measurements Up to 400 A with Different CT Ratio
  • Voltage Measurements Up to 500 V
  • Clip-on CT for Easy Installation
  • W Accuracy Better than 0.5% (PF=1)
  • 8 - Digit LED Display
  • Supports Modbus RTU Protocol
  • Total Harmonic Distortion (THD)
  • Bi-directional Energy
  • Compatible with PMC/PMD Series Data Loggers/Concentrators/IoT Gateways
Specifications
Specifications
x
Model PM-2133D PM-2133D-MTCP
AC Power Measurement
Wiring 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Input Voltage 10 ~ 500 V
Input Current CTØ10 mm (0.05 A~60 A); CTØ16 mm (0.1 A~100 A); CTØ24 mm (0.15 A~200 A);
CTØ36 mm (0.3 A~300 A); CTØ36 mm (0.3 A~400 A).
Input Frequency 50 Hz (Range 45 ~ 55 Hz)/60 Hz (Range 55 ~ 65 Hz)
W Accuracy Better than 0.5% (PF=1)
Power Parameter Measurement True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency (45 ~ 65 Hz)
Data Update Rate 1 Second
Display Type LED display
Communication
RS-485 Protocol Modbus-RTU -
Baud rate 9600,19200 (default), 38400, 115200 -
Data format N,8,1; N,8,2; E,8,1; E,8,2; O,8,1; O,8,2 -
Isolation 3000 VDC -
Ethernet Protocol - Modbus TCP
Power
Input Range +85 ~ +264 VAC (277 VAC available))
Power Consumption 6 W
Environment
Operating Temperature -20 ~ +70 ËšC
Storage Temperature -25 ~ +80 ËšC
Ambient Relative Humidity 10% ~ 90% RH, Non-condensing



Technical
Technical
x

PM-2133D 3-phase Smart Energy Meter with LED Display datasheet
