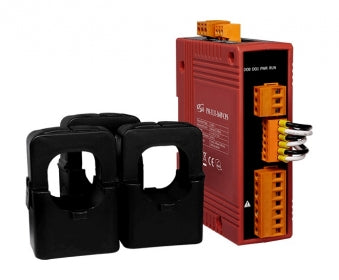

PM-3133-360P-CPS Smart Power Meter, Three phase, CANOpen (300A)

The PM-3133 series is a range of powerful, cost-effective, advanced Smart Power Meters that gives you access to real-time electric usage for three-phase power measurement.

With its high accuracy (<0.5%, PF=1 ), the PM-3133 series can be applied to both low voltage primary side and/ or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation.

These compact and cost-effective power meters are equipped with revolutionary wired clip-on CT's (various types, supporting input currents up to 400 A). It operates over a wide input voltage range 10 ~ 500 VAC which allows worldwide compatibility. And with 2 relay output channels, it can be linked with sirens or lightings for alarm messages. It also supports Modbus RTU, Modbus TCP or CANopen protocols for easy integration.

• Bi-directional Energy
• True RMS Power Measurements
• Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
• Current Measurements Up to 300 A with Different CT Ratio
• Voltage Measurements Up to 500 V
• Clip-on CT for Easy Installation
• W Accuracy Better than 0.5% (PF=1)
• Total Harmonic Distortion (THD)
• Supports CANopen Protocol
• Supports 2 Power Relay Output (Form A)
• IEC 61010-1 and EN 61010-1

PM-3133 Series 3-phase Smart Power Meter Datasheet

• Generator monitoring
• Switchgear distribution systems
• Energy Management
• Power quality analysis
