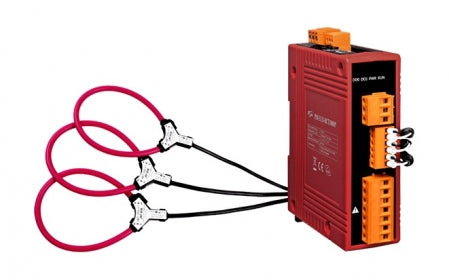

PM-3133-RCT1000P 3-phase Compact Smart Energy Meter (1kA)


Price:
Sale price£908.00

Description

The advanced Smart Power Meter PM-3133-RCT series gives you access to real-time electric usage for three-phase power measurement. With its high accuracy (<1%, PF=1; Input Current >50A), this series can be used for both low voltage primary side and medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation.

Their compact size and Rope-style Rogowski Coil Current Transformers offer  "Easy Installation" with a large window size (55 ~ 105mm) and mechanical flexibility for tight spaces. It operates over a wide range of input voltages 10 ~ 500 VAC which allows universal compatibility. Also, with 2 channels relay outputs, it can be linked with sirens or lights for alarm messages. Variants are also available that support Modbus RTU, Modbus TCP or CANopen protocols for easy integration.

Features

  • True RMS Power Measurements
  • Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
  • Current Measurements Up to 500 A
  • Voltage Measurements Up to 500 V
  • Rogowski Coil Soft CT for Easy Installation
  • 4m lead length for Rogowski Coils
  • W Accuracy Better than 1% (PF=1; Input Current >50A)
  • Supports Modbus RTU Protocol
  • Supports 2 Power Relay Output (Form A)
  • Multiple Data Format

Specifications

AC Power Measurement
Wiring 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Loops Three-phase
Input Voltage 10 ~ 500 V
Input Current CTØ80mm (1 kA)
Input Frequency 50/60 Hz
W Accuracy Better than 1% (PF=1; Input Current >50 A)
Power Parameter Measurement True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent
Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate 1 Second
CT
Includes CTs 3
Type Rogowski
Max. Current 1kA
Inside Diameter 80 mm
Leading Cable 4 m
COM Ports
Ports 1 x RS-485
Baud Rate 9600, 19200 (default), 38400, 115200; DIP Switch Selectable
Data Format N,8,1 (default); N,8,2; E,8,1; E,8,2; O,8,1; O,8,2
Protocol Modbus RTU
Isolation 3000 VDC
Power
Input Range +12 ~ 48 VDC
Consumption 2 W
Alarm Contact Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63 Hz), 5 A @ 30 VDC
Mechanical
Casing Plastic
