Description

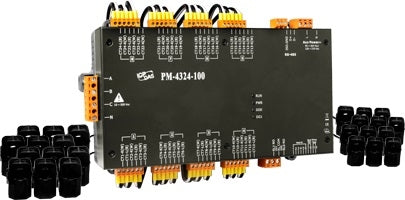

The PM-4324 Multi-Channel Power Meter monitors up to 8 three phase circuits or 24 single phase circuits, or any combination of single or three phase circuits.
The PM-4324 can measure up to 24 currents via external Current Transformers (CTs). This flexibility makes the PM-4324 perfect for multitenant facilities such as residential projects, office buildings and shopping malls. This compact instrument is designed to easily fit into existing panel boards or be flush mounted nearby, thus eliminating the need for expensive retrofit projects or for allocating extra space for the device.
Features
- 8 three phase circuits or 24 single phase circuits
- True RMS Power Measurements
- Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
- Current Measurements Up to 400 A with Different CT Ratio
- Voltage Measurements Up to 500 V
- Split Core CT for Easy Installation
- W Accuracy Better than 0.5% (PF=1)
- Supports RS-485, (Ethernet or CAN bus Interface Coming soon)
- Supports Modbus RTU, Modbus TCP Protocol
- Supports 2 Power Relay Output (Form A)
- Total Harmonic Distortion (THD)
Specifications
| Models | PM-4324 | PM-4324-MTCP ~ Available soon ~ | ||
| AC Power Measurement | ||||
| Wiring | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT | |||
| Measurement Voltage | 10 ~ 500 V | |||
| Measurement Current | CTØ10 mm (60 A); CTØ16 mm (100 A); CTØ24 mm (200 A); CTØ36 mm (300 A); CTØ36 mm (400 A) | |||
| Measurement Frequency | 50/60 Hz | |||
| W Accuracy | Better than 0.5% (PF=1) | |||
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh),Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency | |||
| Data Update Rate | 1 Second | |||
| Communication | ||||
| RS-485 | Protoco | Modbus-RTU | - | |
| Baud rate |
9600,19200 (default), 38400, 115200; DIP Switch Selectable |
- | ||
| Data format | N,8,1; N,8,2; E,8,1; E,8,2; O,8,1; O,8,2 | - | ||
| Isolation | 3000 VDC | - | ||
| Ethernet | Protocol | - | Modbus TCP | |
| Alarm Output | ||||
| Power Relay | Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63Hz), 5 A @ 30 VDC | |||
| Power | ||||
| Input Range | +85 ~ +264 VAC | |||
| Power Consumption | 6 W | |||
| Mechanical | ||||
| Casing | Plastic | |||
| Dimensions (W x L x H) | 237 mm x 52 mm x 134 mm | |||
| Module Installation | DIN-Rail Mounting | |||
| Environment | ||||
| Operating Temperature | -20 ~ +70 °C | |||
| Storage Temperature | -25 ~ +80 °C | |||
| Ambient Relative Humidity |
10% ~ 90% RH, Non-condensing |
|||
