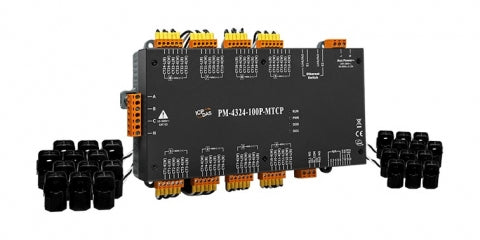

The PM-4324-MTCP Multi-Channel Power Meter monitors up to 8 three phase circuits or 24 single phase circuits, or any combination of single or three phase circuits. ModbusTCP protocol. Available with 60, 100, 200, 300 or 400A CT's. Variants and pricing available from...
Contact for Price

FREE delivery to UK on orders over £500

Or phone us for our best price

0800 048 1057

Free Shipping

Free standard shipping on orders over £500

Free Returns

30 Day Money Back Guarantee
PM-4324-MTCP series Multi-channel Power Meter (ethernet)

PM-4324-MTCP series Multi-channel Power Meter (ethernet)

£1,151.00
PM-4324-MTCP series Multi-channel Power Meter (ethernet)

PM-4324-MTCP series Multi-channel Power Meter (ethernet)

£1,151.00
Description
Description
x
The PM-4324-MTCP Multi-Channel Power Meter monitors up to 8 three phase circuits or 24 single phase circuits, or any combination of single or three phase circuits. ModbusTCP protocol. Available with 60, 100, 200, 300 or 400A CT's. Variants and pricing available from Recommended products section (base of page)
Features
Features
x
  • Bi-directional Energy
  • 8 Three Phase Circuits or 24 Single Phase Circuits
  • True RMS Power Measurements
  • Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
  • Current Measurements Up to 60 A with Different CT Ratio
  • Voltage Measurements Up to 500 V
  • Easy install with split core CT
  • W Accuracy Better than 0.5% (PF=1)
  • Total Harmonic Distortion (THD)
  • Support Modbus TCP Protocol
  • Support 2 Power Relay Output (Form A)
Specifications
Specifications
x
AC Power Measurement
Wiring 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Loops Multi-circuit
Input Voltage 10 ~ 500 V
Input Current CTØ10 mm (60 A); CTØ16 mm (100 A); CTØ24 mm (200 A); CTØ36 mm (300 A); CTØ36 mm (400 A)
Input Frequency 50/60 Hz
W Accuracy Better than 0.5% (PF=1)
Power Parameter Measurement True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh),Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate 1 Second
CT
Includes CTs 24
Type Clip
Leading Cable 4 mm
Ethernet
Protocol Modbus TCP
Power
Input Range +85 ~ +264 VAC (277 VAC available)
Consumption 6 W
Alarm Output Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63 Hz), 5 A @ 30 VDC
Mechanical
Casing Metal
Dimensions (mm) 237 x 57 x 134 (W x L x H)
Installation DIN-Rail & wall mounting
Environment
Operating Temperature -20 ~ +70 °C
Storage Temperature -25 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing



Technical
Technical
x

PM-4324 Datasheet

Applications
Applications
x
  • Generator monitoring
  • Switchgear distribution systems
  • Energy Management
  • Power quality analysis
