Description

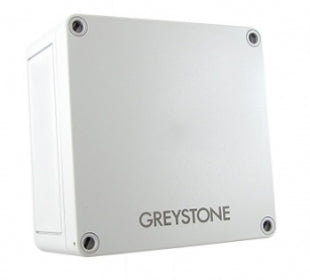

The PMOS Outside Particulate Matter Sensor uses an optical sensor based on laser scattering principles and features innovative contamination resistance technology to perform highly accurate and reliable PM measurements. The replaceable sensor measures particles of PM2.5 and PM10, with a continuous operation lifetime of more than 8 years. The sensor will provide long-term reliability and high resolution particle size binning for the detection of environmental dust and other particles.
NOTE: Please contact us if you are interested in Modbus RTU, BACNet MS/TP Communication or the Relay output option.
Features
- Laser scatter method sensor
- Highly accurate and reliable PM measurements
- Detection of environmental dusts and other particles
- LCD Display
- Network communication
Specifications
- SENSOR: Laser scatter method (field replaceable)
- PARTICULATE SIZE PM1.0, PM2.5, PM4.0, or PM10 (selectable)
- MASS CONCENTRATION RANGE 0 - 1000 ug/m3
- RESOLUTION 1 ug/m3
- ACCURACY ±10 ug/m3 (0 - 100 ug/m3 ), ±10% (100 - 1000 ug/m3 )
- RESPONSE TIME 1 second
- SENSOR LIFETIME >8 years
-
ANALOG MODEL
Consumption: 75 mA max @ 24 Vdc, 100 mA max @ 24 Vac
Output Signals: 4-20 mA (sourcing) or 0-5 Vdc / 0-10 Vdc (selectable)
Output Drive Capability: Current - 550Ω max Voltage - 5,000Ω min
Output Scale: 0 to 1000 ug/m3 (menu selectable) -
BACnet® MODEL
Consumption: 50 mA max @ 24 Vdc, 80 mA max @ 24 Vac
Interface: MS/TP, 2 wire RS-485
Baud Rate: 9600, 19200, 38400, 57600, 76800 or 115200 (menu selectable)
Address Range: 0 - 127 (menu selectable) -
MODBUS MODEL
Consumption: 50 mA max @ 24 Vdc, 80 mA max @ 24 Vac
Interface: 2 wire RS-485, RTU
Baud Rate: 9600, 19200, 38400, 57600, 76800 or 115200 (menu selectable)
Address Range: 1-255 (menu selectable) -
PM ALARM RELAY (OPTIONAL)
Contact Ratings: Form C (NO + NC), 2A @ 140 Vac, 2A @ 30 Vac
Setpoint + Hysteresis: Programmable via menu -
DISPLAY
Internal LCD for setup
Display values
Mass Concentration: 0 - 1000 ug/m3
Air Quality Index: 0 - 500 AQI Good/Moderate/Poor (menu selectable) - POWER SUPPLY 24 Vac/dc ±20% (non-isolated half-wave rectified)
- PROTECTION CIRCUITRY Reverse voltage protected, over-voltage protected
- OPERATING CONDITIONS -10 to 60°C (14 to 140°F), 20 to 80 %RH non-condensing
- STORAGE CONDITIONS -30 to 60°C (-22 to 140°F)
- ENCLOSURE Polycarbonate, IP65 (NEMA 4X)
- ENCLOSURE DIMENSIONS 130mm W x 130mm H x 75mm D (5.12” x 5.12” x 2.95”)
- WIRING Screw terminal block (14 to 22 AWG)
- COUNTRY OF ORIGIN Canada
