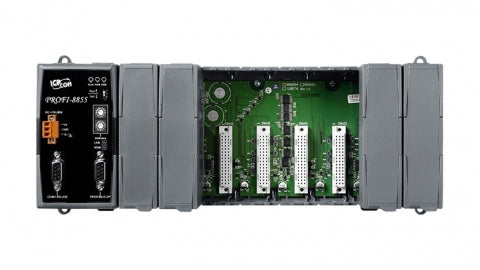

PROFI-8855 PROFIBUS Remote I/O Unit with 8 I/O Slots
PROFI-8855 PROFIBUS Remote I/O Unit with 8 I/O Slots

PROFI-8855 PROFIBUS Remote I/O Unit with 8 I/O Slots

£521.00
£521.00
(-0%)
PROFIBUS Remote I/O Unit with 8 I/O Slots
Subtotal: £521.00

Free Shipping

Free standard shipping on orders over £500

Free Returns

30 Day Money Back Guarantee
PROFI-8855 PROFIBUS Remote I/O Unit with 8 I/O Slots

PROFI-8855 PROFIBUS Remote I/O Unit with 8 I/O Slots

£521.00
PROFI-8855 PROFIBUS Remote I/O Unit with 8 I/O Slots

PROFI-8855 PROFIBUS Remote I/O Unit with 8 I/O Slots

£521.00
Description
Description
x

The PROFI-8855 Remote I/O Unit is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 8 slots for ICPDAS I-8k High Profile series, and I-87k High Profiles series I/O modules. In addition, we also provide hot-swap function for I-87k High Profiles series I/O modules. To setup network, users can choose and configure I/O modules by using the GSD file without any other setting tools.

src=

Features
Features
x
  • Protocol & Hierarchy : DP-V0 & DP-V1 (Read/Write) Slave
  • Transmission Rate Setting : detected automatically
  • Address Setting : 0~126 set by Rotary switches, SSA-telegram set by DP-Master(Class 2 only)
  • I/O modules Configuration : Configured by GSD file
  • Supports I/O modules hot-swap : I-87K High Profile units; I-8000 high-speed I/O units
  • Network Isolation Protection : High Speed iCoupler
  • DC Isolation Protection : 3000VDC on PROFIBUS side
  • 4KV ESD Protection : Contact for each terminal
Specifications
Specifications
x
CPU Module
CPU 80186, 80 MHz or compatible
EEPROM 2 KB
Flash 512 KB
SRAM 512 KB
LED Indicators
Status PWR LED, RUN LED, ERR LED
I/O Expansion
Slots 8
COM Ports
Ports RS-232 (For updating firmware)
PROFIBUS
Controller Profichip VPC3+C
Transceiver ADI ADM2486
Baud Rate 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol DP-V0
Power
Consumption 5.5 W
Mechanical
Dimensions (mm) 312 x 91 x 132 (W x L x H)
Installation DIN-Rail or Wall Mounting
Environment
Operating Temperature -25 ~ +75℃
Storage Temperature -40 ~ +80 ℃
Humidity 5 ~ 95% RH, Non-condensing



Technical
Technical
x

PROFI-8855  ProfiBus Remote I/O backplane unit datasheet

Modules Supported

Type Module Name
DI I-8040 / I-8051 / I-8052 / I-8053 / I-8053W / I-8058
I-87040 / I-87051 / I-87052 / I-87053 / I-87058
I-87040W / I-87046W / I-87051W / I-87052W / I-87053W / I-87053W-A5 / I-87058W / I-87059W
DO I-8037 / I-8037W / I-8041 / I-8056 / I-8057 / I-8060 / I-8064 / I-8065 / I-8066 / I-8068 / I-8069
I-87041 / I-87057 / I-87064 / I-87065 / I-87066 / I-87068 / I-87069
I-87041W / I-87057W / I-87064W / I-87065W / I-87066W / I-87068W / I-87069W
DI/O I-8042 / I-8050 / I-8054 / I-8055 / I-8063 / I-8077
I-87054 / I-87055 / I-87061W / I-87063
I-87054W / I-87055W / I-87063W / I-87016W
AI I-8017H / I-8017HS /  I-8017HW / I-87018W
I-87013 / I-87017 / I-87018
I-87013W / I-87015W / I-87017W / I-87017W-A5 / I-87017RW / I-87017RCW / I-87018RW /I-87018ZW / I-87019RW
AO I-8024 / I-8024W
I-87022 / I-87024 / I-87024CW / I-87026
I-87024W / I-87024UW / I-87028CW
Multifunction I-8026W
Counter/Frequency I-8080
I-87082
I-87082W
Motion I-8093W



Applications
Applications
x
  • Industrial Automation
  • Factory Automation
  • Process Automation
