Description
QuickDAQ allows you to acquire and display from all Data Translation USB and Ethernet data acquisition devices that support analog input streaming. Combine QuickDAQ with Data Translation hardware to acquire data, record data to disk, display the results in both a plot and digital display, and read a recorded data file. Be productive right out of the box with this powerful data logging software. Data can be exported to other applications like Microsoft Excel® and The Mathworks MATLAB® for more advanced analysis.
Two additional upgrade options can be purchased to add FFT analysis capabilities to the base package.
On top of the standard software with Analysis option, the Advanced package includes: Perform two-channel FFT operations including: Frequency Response Functions, Supports the extra reference window types, Supports real, imaginary, and Nyquist display functions & allows saving of data in .uff file format.
Features
QuickDAQ Base Package (Free)
- Configure all input channel settings for the attached sensors
- Load/save multiple hardware configurations
- Acquire data continuously or for a specified duration
- Generate output stimuli (fixed waveforms, swept sine waves, or noise signals)
- Log acquired data to disk in an .hpf file
- Display data in digital display or as waveform in Channel Plot window
- View statistics about the acquired data, including the minimum, maximum, delta, and mean values, and the standard deviation in the Statistics window
- Export time data to a .csv or .txt file
-
Customize many aspects of the acquisition, display, and recording functions to suit your needs, including the acquisition duration, sampling frequency, trigger settings,filter type, and temperature units to use
FFT Analysis Option (License Required)
- Includes all the features of the QuickDAQ Base Package plus these features and more:
- Perform single-channel FFT operations including AutoSpectrum, Spectrum, and Power Spectral Density. Configure a number of parameters for the FFT, including the FFT size, windowing type, averaging type, integration type
-
Supports Hanning, Hamming, Bartlett, Blackman, Blackman Harris, and Flat Top response windows

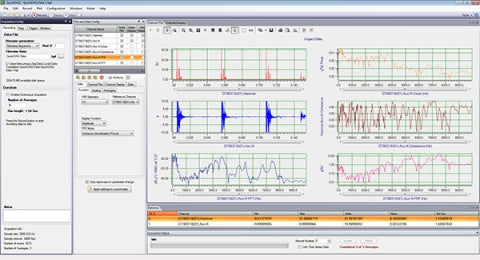

Advanced FFT Analysis Option (License Required)
- Includes all the features of the QuickDAQ Base Package and FFT Analysis Package plus these features and more:
- Perform two-channel FFT operations including: Frequency Response Functions (Inertance, Mobility, Compliance, Apparent Mass, Impedance, Dynamic Stiffness, or custom FRF) with H1, H2, or H3 estimator types, Cross-Spectrum, Cross Power Spectral Density, Coherence, and Coherent Output Power
- Supports the following reference window types: Hanning, Hamming, Bartlett, Blackman, Blackman Harris, FlatTop, Exponential, Force, and Cosine Taper windows
- Supports real, imaginary, and Nyquist display functions
- Save data in the .uff file format
