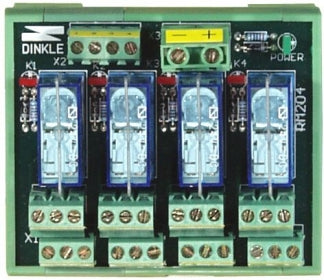

RM-204 4-channel DPDT Power Relay Module


Price:
Sale price£65.00

Description

The RM series relay modules can be mounted on different DIN rail, such as TS-15, TS-32 or TS-35. Every channel of RM-104, RM-108, and RM-116 contains 1 Form C relay while every channel of RM-204, RM-208, and RM216 contains 2 Form C relays. The reverse polarity protection is provided to prevent improper operation. Every channel also has an LED to indicate its status. RM series modules include 4-channel relays, 8-channel relays and 16-channel relays versions for different applications.

Specifications

Rate current for each relay: 8 A
Two NC and two NO contacts for each channel
Max. Peak current: 14 A
Standard contact material: AgCdO
Input Voltage: DC 24 V
The coil current is 22 mA.
Can be used to sink type of digitial output module only.
Rated voltage for each relay: 250 VAC

90 mm x 87 mm x 63 mm (L x W x H)





Technical

 RM Power Relay Module Datasheet
