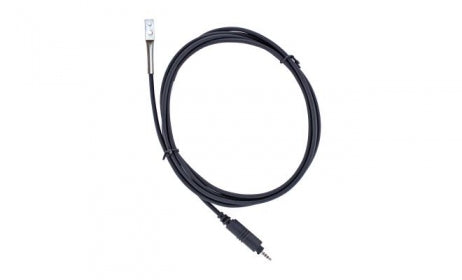

SD-TEMP-P-06 Self-Describing 6-foot Pipe Temperature Sensor
SD-TEMP-P-06 Self-Describing 6-foot Pipe Temperature Sensor

SD-TEMP-P-06 Self-Describing 6-foot Pipe Temperature Sensor

£108.00
£108.00
(-0%)
Temperature sensor for MX1104/5 data loggers. Suitable for Pipe mounting.
Subtotal: £108.00

Free Shipping

Free standard shipping on orders over £500

Free Returns

30 Day Money Back Guarantee
SD-TEMP-P-06 Self-Describing 6-foot Pipe Temperature Sensor

SD-TEMP-P-06 Self-Describing 6-foot Pipe Temperature Sensor

£108.00
SD-TEMP-P-06 Self-Describing 6-foot Pipe Temperature Sensor

SD-TEMP-P-06 Self-Describing 6-foot Pipe Temperature Sensor

£108.00
Description
Description
x

For use with HOBO MX1104 and MX1105 Multi-Channel Data Loggers, this temperature sensor, which is suitable for pipe mounting, offers integrated strain relief, so the probe is secured to the logger. And it features Self-Describing technology to automatically communicate configuration information to the logger, without any programming or extensive user setup.

Features
Features
x
  • Self-Describing technology for quick, easy set up
  • Locking jack to ensure sensor is connected and stays connected
  • Measurement range of -40° and 100°C (-40° to 212°F)
  • Accuracy of ±0.15°C from 0° to 70°C (±0.27°F from 32° to 158°F)
  • Available in 1.8 m (6 ft)
  • Faster response time
  • Suitable for pipe mounting
Specifications
Specifications
x
Measurement Range -40° to 100°C (-40° to 212°F)
Accuracy ±0.15°C from 0° to 50°C (±0.27°F from 32° to 122°F), insert probe 2.3 cm (0.9 inches) minimum; see Plot A
Resolution 0.002° at 25°C (0.003° at 77°F)
Drift <0.1°C (<0.2°F) per year
Response Time in Air 2 minutes typical to 90% in air moving 1 m/s (2.2 mph)
Response Time on a Pipe Typically 2 times faster than the SD-TEMP-xx air/water/soil temperature probe; typically less than 1 minute to 90%
Probe Housing Copper-plated sensor tip
Probe Dimensions 0.9 x 5.8 cm (0.38 x 2.3 inches)
Cable Length 1.8 m (6 ft)
