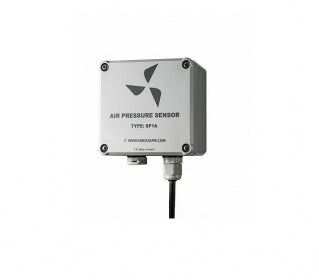

SP1A Barometric Air Pressure Sensor (SDI-12)


Price:
Sale price£180.00

Description

The SP1A air pressure transmitter is ready for installations in wide temperature range and offers measurement range of 600…1100 mBar.

It has a variety of uses, for indoor as well as outdoor applications. It uses SDI-12 communication, making it suitable for use with the Micro Power Weather Stations/data loggers or can be integrated with other popular systems.

Features

  • Operating range: 600…1100 hPa [mbar], -40 … +60°C
  • Accurate measurement
  • Waterproof housing with IP65 protects against sprayed water
  • Protection from particles, oils and liquids with pressure compensation element
  • Compatible with logging devices with SDI-12 standard Low power consumption

Specifications

  • Working temperature -40 …. +60°C
  • Measuring element Piezoresistive pressure measuring cell
  • Measuring range 600 … 1100 hPa [mbar]
  • Accuracy ±0,5 hPa at 25°C
  • Resolution 0,05 hPa
  • Long term stability ≤0,2% FSO*/year
  • Output type SDI-12
  • Power supply 4 … 16 Vdc
  • Current consumption <1mA at 12V
  • Housing ABS, Polycarbonate available on request
  • Ingress protection IP 65
  • Weight 138g
  • Cable optional
  • Cable glands 1 or 2 possible to use the sensor as a junction box

* FSO (Full Scale Output) describes the difference of the upper and the lower limit of the pressure range

Technical

SP1A Barometric Pressure Sensor Datasheet
