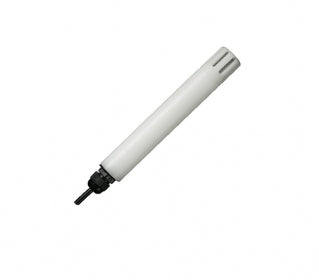

SRH1A Temperature & Humidity Sensor (SDI12)


Price:
Sale price£200.00

Description

This Temperature and Humidity sensor offers ± 1.8% RH (at 25°C)  and  ± 0,2°C temp accuracy, which makes it ideal for professional meteorology use, as well as environmental and industrial measurements. The use of digital SDI-12 interface protocol makes the sensor easily compatible with wide range of data loggers.

The housing of the sensor is made of POM – C, highly rigid material known for its hardness, durability, good creep resistance and low water absorption. As the material is fully ESD resistant, the sensor can be installed in Electrostatic Discharge Protected Areas (EPA).



Features

  • Measurement ranges: 0 – 100% RH; -40 ... +60°C
  • SDI-12 output
  • POM-C enclosure, extremely robust
  • Fully calibrated with 1,8% RH accuracy
  • Low power consumption
  • Excellent long-term stability

Specifications

  Humidity Temperature
Measuring range 0 … 100%RH   -40 … +60°C
Accuracy at 25 °C ±1,8%RH (0 … 90%RH),
±3,0%RH (>90%RH)
±0,3°C (0 … 60°C),
±0,5°C (for the remaining range values)
Output signal  SDI-12 SDI-12
Nonlinearity  <0,1%RH
Long-term stability Typ. <0,25%RH / yr  Typ. <0,02°C / yr
Resolution  0,01%RH 0,01°C
Working temperature -40 …. +60°C
Power supply 4 … 16 Vdc
Power consumption < 1mA with 12V supply
Ingress Protection  electronics - IP 66
sensing element – IP 40
Housing material  POM – C
Filter material  stainless steel
Pores size 33µm
Cable length 1m , optional extension
Weight  107 g



Technical

Temperature/RH Sensor Datasheet
