Description

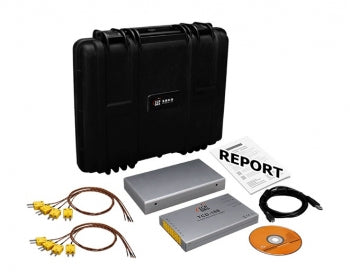

TCD-108 temperature measurement module can provide high-precision temperature measuring capability with standard K-type thermocouples.
The TCD-108 has built-in over-temperature protection, intelligent temperature data logging capability, automatic analysis result output (highest Tin temperature, tinning time, heating rate, etc.).
Features
- 8-channel K-type thermocouple (± 0.5℃ Accuracy)
- Thermocouple length: 50 cm
- Sampling Rate: 50 ms to 60000 seconds
- Max. recording for each channel: 300,000
- Traceable temperature data
- Easy-to-use software interface
- Powered by 4x AAA batteries (60 hours @ 50 ms sampling rate)
- 400℃ Operating Temperature with Thermal Insulation Box
Specifications
LED Indicators | |
---|---|
Status |
Log : Yellow for data logger Power : Green for normal operation Error : Red for error indicator |
Temperature Measurement | |
---|---|
Sensor Type | K-Type |
Channels | 8 |
Range | -270°C to 1372°C (-454°F to 2502°F) |
Resolution | 0.1ºC |
Accuracy | ±0.5ºC |
System | |
---|---|
Data Logger | 300,000 records |
USB | |
---|---|
Specification | USB 2.0 Full-Speed |
Power | |
---|---|
Consumption | 0.06 W Max. |
Battery Usage Life | Operating for more than 60 hours with heavy-duty AAA battery x 4 |
Mechanical | |
---|---|
Dimensions (mm) | 104 x 169 x 21 (W x L x H) |
Environment | |
---|---|
Operating Temperature | -40 to +400°C |
Humidity | 10 to 95% RH, Non-condensing |
Technical
TCD-104/108 High Range Temperature data logger datasheet
Applications
SMD assembly manufacturing, PC board manufacturing, footware manufacturing, food industry, pharmaceutical industry and any temperature measurement required industries.
